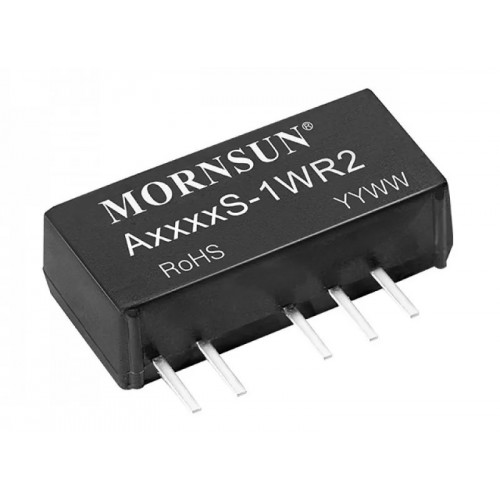

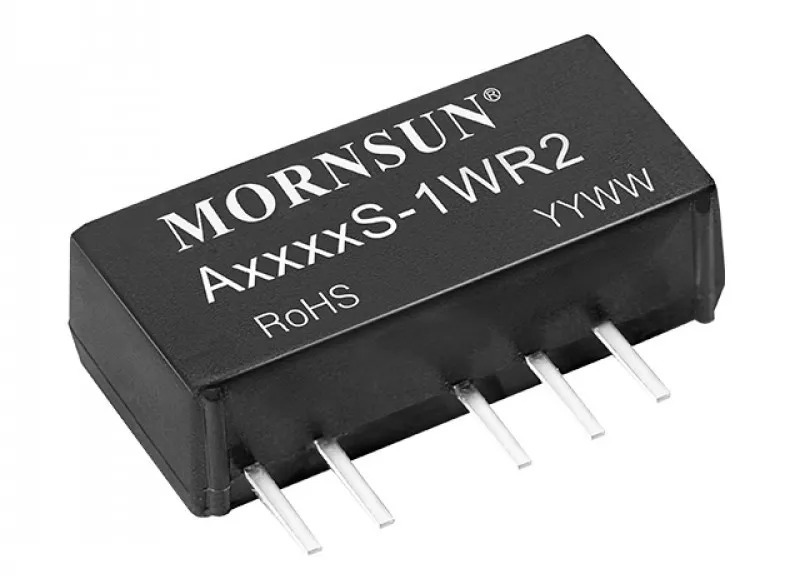

MORNSUN A1212S-1WR2 Isolated DC-DC Converter Module

  • Stock: Out Of Stock

    Availability: NotInStock priceValidUntil: 2026-12-18

  • Brand: Mornsun
  • SKU: 7512 | DAG113

Availability: NotInStock priceValidUntil: 2026-12-18

  • Rs. 160.48 (inc GST)
    Rs.136.00 + GST
    Qty :

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

MORNSUN A1212S-1WR2 Isolated DC-DC Converter Module

MORNSUN A1212S-1WR2 isolated DC-DC converter module with dual ±12 VDC outputs, 1 W rated power and 1500 VDC input-to-output isolation.

The MORNSUN A1212S-1WR2 is an isolated DC-DC converter module that converts a nominal 12 VDC input to dual ±12 VDC outputs. It delivers 1 W for low-power circuits that need separate positive and negative supply rails. Its input range is 10.8 to 13.2 VDC.
The SIP package helps fit power conversion into compact circuit layouts. Input-to-output isolation separates the supply side from the output side. Continuous, self-recovering short-circuit protection helps the module resume operation when a fault clears. Full-load efficiency is 76% minimum and 80% typical.
Use this module in distributed power systems, pure digital circuits, low-frequency analog circuits, relay-driven circuits or data switching circuits. It provides a compact way to add isolated bipolar rails to these designs.
DNA stocks MORNSUN modules for isolated power designs. Explore our DC to DC Converter Modules to find options for your build. Check other DC to DC Converter Modules that we have in stock
For Indian electronics buyers, DNA can help source parts you cannot find, with import support and retail or bulk order support. Ask us about Programmer, Transistor, Hongfa Relay, Sensor, Digital IC or Inductor items. Contact Us

Features of MORNSUN A1212S-1WR2 Isolated DC-DC Converter Module

  • Positive and negative output rails for bipolar circuits
  • Input-to-output isolation separates the supply and output sides
  • Continuous short-circuit protection recovers when a fault clears
  • SIP package supports compact board layouts
  • Unregulated conversion for low-power circuits

Specifications of MORNSUN A1212S-1WR2 Isolated DC-DC Converter Module

  • Input voltage range: 10.8 to 13.2 VDC
  • Output voltage: +12 VDC and -12 VDC
  • Output current: ±5 mA minimum to ±42 mA maximum
  • Rated output power: 1 W
  • Full-load efficiency: 76% minimum, 80% typical at nominal input voltage
  • Input-to-output isolation voltage: 1500 VDC minimum for a 1-minute electric-strength test
  • Operating temperature: -40°C to +105°C, with derating at 85°C or higher
  • Dimensions: 19.50 × 6.00 × 9.30 mm

Applications of MORNSUN A1212S-1WR2 Isolated DC-DC Converter Module

  • Distributed power supply systems
  • Pure digital circuits
  • Low-frequency analog circuits
  • Relay-driven circuits

Related Links for MORNSUN A1212S-1WR2 Isolated DC-DC Converter Module

Package Includes

  • 1 X MORNSUN A1212S-1WR2 Isolated DC-DC Converter Module
Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
