Mornsun LM35-22B12 Enclosed AC/DC Switching Power Supply

  • Stock: Out Of Stock

    Availability: NotInStock priceValidUntil: 2026-12-18

  • Brand: Mornsun
  • SKU: 7514 | DAD899

Availability: NotInStock priceValidUntil: 2026-12-18

  • Rs. 911.55 (inc GST)
    Rs.772.50 + GST
    Qty :

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

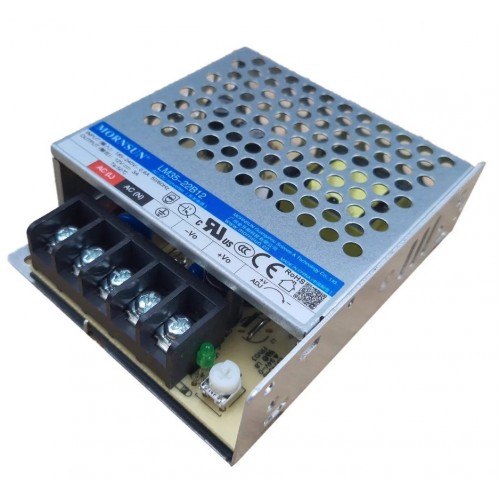

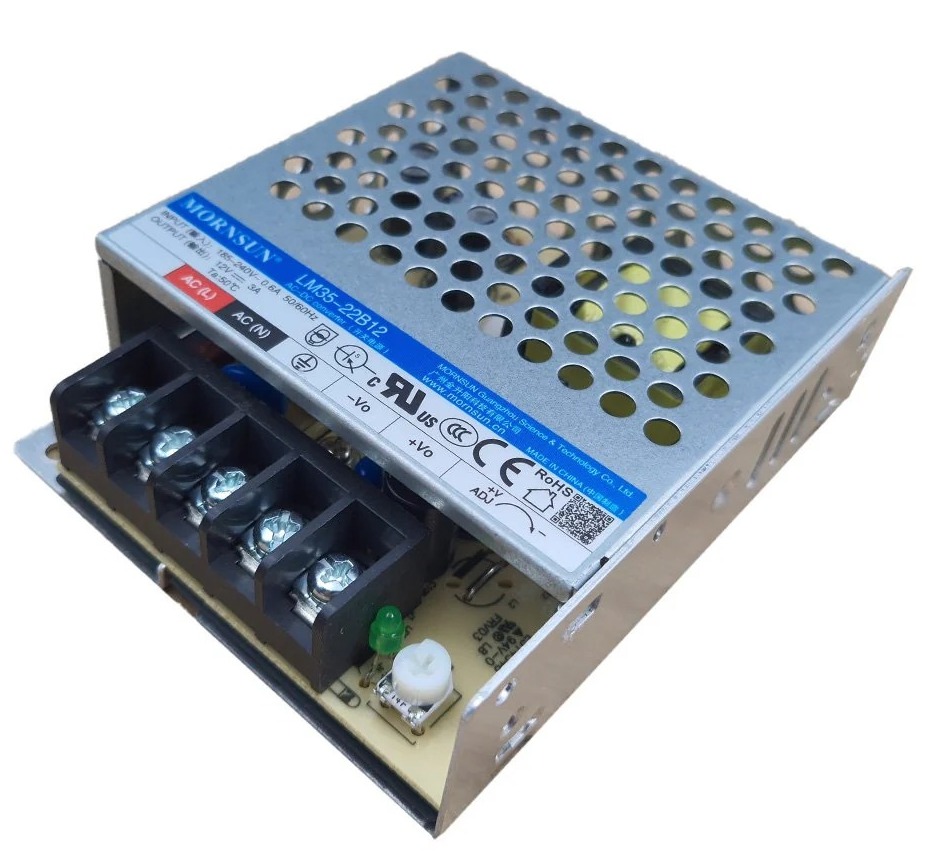

Mornsun LM35-22B12 Enclosed AC/DC Switching Power Supply

Mornsun LM35-22B12 enclosed AC/DC switching power supply with 12 VDC output, 3 A rated current and 36 W output power.

The Mornsun LM35-22B12 is an enclosed AC/DC switching power supply with a single 12 VDC output rated at 3 A. It converts AC or DC input power to a steady output for connected equipment.
Its input terminals accept either AC or DC, which gives designers more input options. The adjustable output helps match the supply to the needs of a circuit. Built-in short-circuit protection, over-current protection and over-voltage protection help guard the supply during faults. Free-air convection cools the unit without a fan.
Use this 12 V power supply for industrial applications, telecommunications, LED applications or street-light control. Its enclosed design suits equipment that needs a compact, integrated power source.
DNA supplies Mornsun power products for electronics buyers in India. Browse our Mornsun SMPS range for power options used in industrial, lighting and communications designs. Check other Mornsun SMPS that we have in stock
For Indian electronics buyers, DNA offers retail and bulk support, with import support for parts that are hard to find. Contact us for power supplies, DC to DC converter modules, IGBTs and other components. Contact Us

Features of Mornsun LM35-22B12 Enclosed AC/DC Switching Power Supply

  • Accepts AC or DC through the same input terminals
  • Enclosed metal case supports installation in equipment
  • Free-air convection cooling uses no fan
  • Adjustable output helps match connected circuit needs
  • Protection covers short circuits, over-current and over-voltage

Specifications of Mornsun LM35-22B12 Enclosed AC/DC Switching Power Supply

  • Input voltage: 165–264 VAC or 180–370 VDC
  • Output voltage: 12 VDC nominal, adjustable from 10.2 to 13.8 V
  • Output current: 3 A nominal
  • Output power: 36 W
  • Input-to-output isolation test voltage: 4000 VAC for 1 minute
  • Operating temperature: −30°C to +70°C
  • Dimensions: 99.00 × 82.00 × 30.00 mm

Applications of Mornsun LM35-22B12 Enclosed AC/DC Switching Power Supply

  • Industrial applications
  • LED applications
  • Street-light control
  • Telecommunications

Related Links for Mornsun LM35-22B12 Enclosed AC/DC Switching Power Supply

Package Includes

  • 1 X Mornsun LM35-22B12 Enclosed AC/DC Switching Power Supply
Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
