Product Images are shown for illustrative purposes only and may differ from actual product.

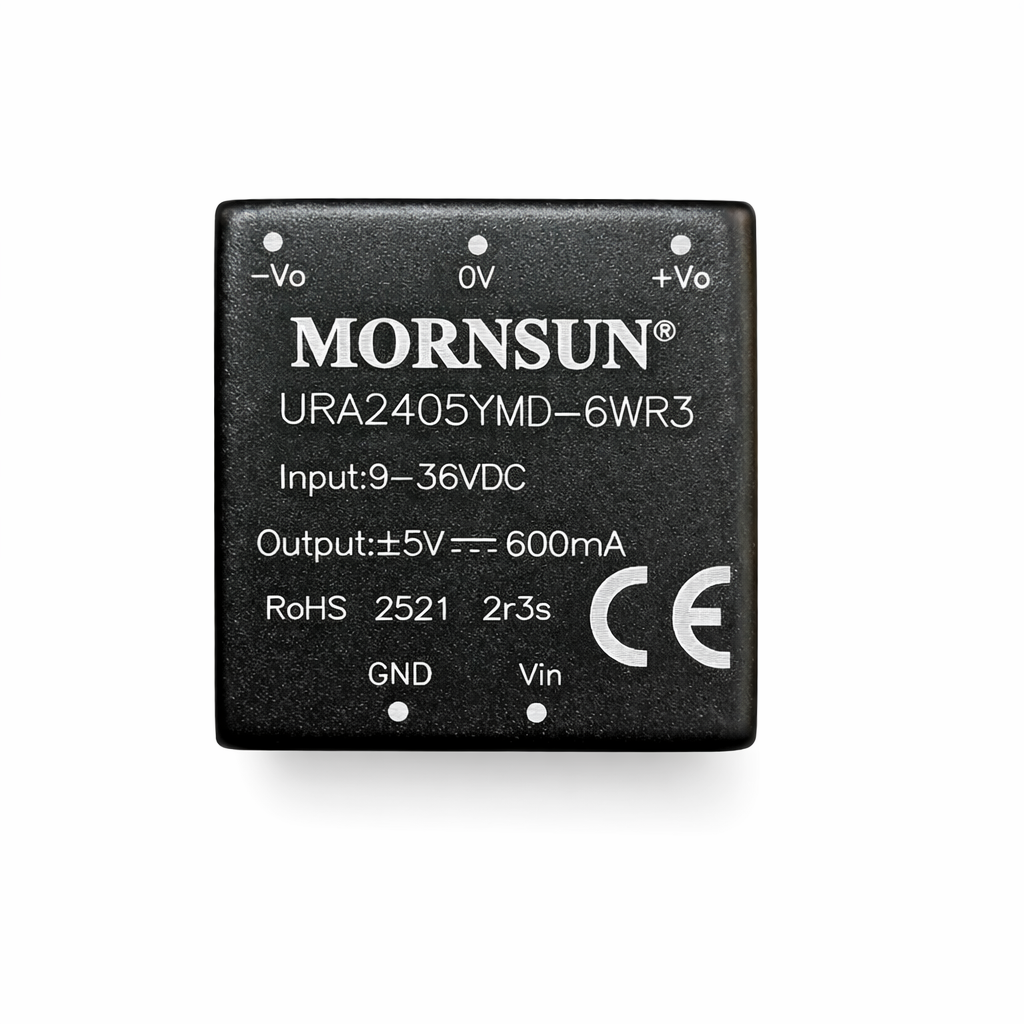

Mornsun URA2405YMD-6WR3 Isolated DC-DC Converter Module

  • Stock: 10

    Availability: InStock priceValidUntil: 2026-12-17

  • Brand: Mornsun
  • SKU: 10570 | DAJ642

Availability: InStock priceValidUntil: 2026-12-17

  • Rs. 758.56 (inc GST)
    Rs.642.85 + GST
    Qty :

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

Mornsun URA2405YMD-6WR3 Isolated DC-DC Converter Module

Mornsun URA2405YMD-6WR3 isolated DC-DC converter module with dual ±5 V outputs, 24 V nominal input and 6 W rated power.

The Mornsun URA2405YMD-6WR3 is an isolated DC-DC converter module that converts a 24 VDC nominal input into regulated dual ±5 VDC outputs. It has a 6 W rated output and accepts a 9–36 VDC input range.
Its dual-output design can supply positive and negative rails from one module. Input under-voltage protection and output short-circuit, over-current and over-voltage protection support safer operation. Input-to-output isolation helps separate power domains, while Class A emissions support use in compatible system designs.
This module suits industrial control, communication, medical care, electric power, instruments and railway equipment. Its combination of isolated power and dual rails can simplify power supply design in these applications.
DNA supplies Mornsun power modules for electronics projects and system designs. Explore our DC to DC Converter Modules to find parts for your power conversion needs. Check other DC to DC Converter Modules that we have in stock
For Indian electronics buyers, DNA can help source parts that are not listed. Ask us about import support and retail or bulk orders. You can also enquire about Power Supply, Inductor, LCD, DC to DC Converter Module, Transistor and Connectors. Contact Us

Features of Mornsun URA2405YMD-6WR3 Isolated DC-DC Converter Module

  • Dual-output design provides positive and negative voltage rails
  • Wide 4:1 input range supports varied input levels
  • Input under-voltage protection
  • Output short-circuit, over-current and over-voltage protection
  • Continuous short-circuit protection with self-recovery
  • CISPR32/EN55032 Class A emissions without extra components

Specifications of Mornsun URA2405YMD-6WR3 Isolated DC-DC Converter Module

  • Nominal input voltage: 24 VDC
  • Input voltage range: 9–36 VDC, 40 VDC maximum
  • Output voltage: Dual ±5 VDC
  • Maximum output current: ±600 mA per output
  • Rated output power: 6 W
  • Full-load efficiency: 81% minimum, 83% typical at nominal input voltage and rated load
  • Input-to-output isolation: 1500 VDC electric strength test for 1 minute
  • Operating temperature: -40°C to +85°C, with output power derating above 71°C

Applications of Mornsun URA2405YMD-6WR3 Isolated DC-DC Converter Module

  • Industrial control
  • Communication equipment
  • Medical care
  • Railway equipment

Related Links for Mornsun URA2405YMD-6WR3 Isolated DC-DC Converter Module

Package Includes

  • 1 X Mornsun URA2405YMD-6WR3 Isolated DC-DC Converter Module
