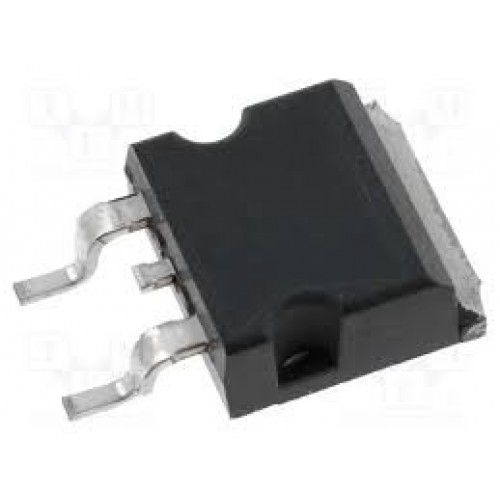

Product Images are shown for illustrative purposes only and may differ from actual product.

STMicroelectronics L7905CD2T-TR Fixed Negative Voltage Regulator

  • Stock: Out Of Stock

    Availability: NotInStock priceValidUntil: 2026-12-18

  • Brand: ST Microelectronics
  • SKU: 7113 | DAH041

Availability: NotInStock priceValidUntil: 2026-12-18

  • Rs. 159.30 (inc GST)
    Rs.135.00 + GST
    Qty :

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

STMicroelectronics L7905CD2T-TR Fixed Negative Voltage Regulator

L7905CD2T-TR fixed negative regulator with nominal −5 V output, up to 1.5 A output current and a D²PAK surface-mount package.

The STMicroelectronics L7905CD2T-TR is a fixed negative voltage regulator with a nominal −5 V output and output current up to 1.5 A. Its D²PAK surface-mount package suits board-level power regulation.
Thermal overload, short-circuit and output transition safe operating area protection help manage common regulator fault conditions. Low quiescent current can also help limit the regulator’s own current draw.
Use this three-terminal regulator for local on-card regulation or split power supplies. Its fixed negative output provides a regulated supply rail for circuits that need negative voltage.
Browse STMicroelectronics voltage regulators at DNA, an electronics retailer serving engineers and electronics buyers. Explore our Voltage Regulators for board-level power designs and other circuit needs. Check other Voltage Regulators that we have in stock
For Indian electronics buyers, DNA offers retail and bulk support, along with import support when a part is hard to find. Contact us if you need help sourcing this regulator or another electronic component. Contact Us

Features of STMicroelectronics L7905CD2T-TR Fixed Negative Voltage Regulator

  • Fixed negative output regulation
  • Thermal overload protection
  • Short-circuit protection
  • Output transition safe operating area protection
  • Three-terminal design

Specifications of STMicroelectronics L7905CD2T-TR Fixed Negative Voltage Regulator

  • Nominal output voltage: −5 V
  • Output voltage tolerance: 4% at 25°C (L7905C variant)
  • Output current: Up to 1.5 A
  • Dropout voltage: 1.4 V typical at 1 A, TJ = 25°C, with 100 mV output change
  • Quiescent current: 3 mA maximum at TJ = 25°C
  • Supply voltage rejection: 54 dB minimum, 60 dB typical at 120 Hz and 10 V input change
  • Operating junction temperature: 0°C to 150°C (L79xxC versions)
  • Package: D²PAK, surface mount

Applications of STMicroelectronics L7905CD2T-TR Fixed Negative Voltage Regulator

  • Local on-card regulation
  • Split power supplies

Related Links for STMicroelectronics L7905CD2T-TR Fixed Negative Voltage Regulator

Package Includes

  • 1 X STMicroelectronics L7905CD2T-TR Fixed Negative Voltage Regulator
Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
