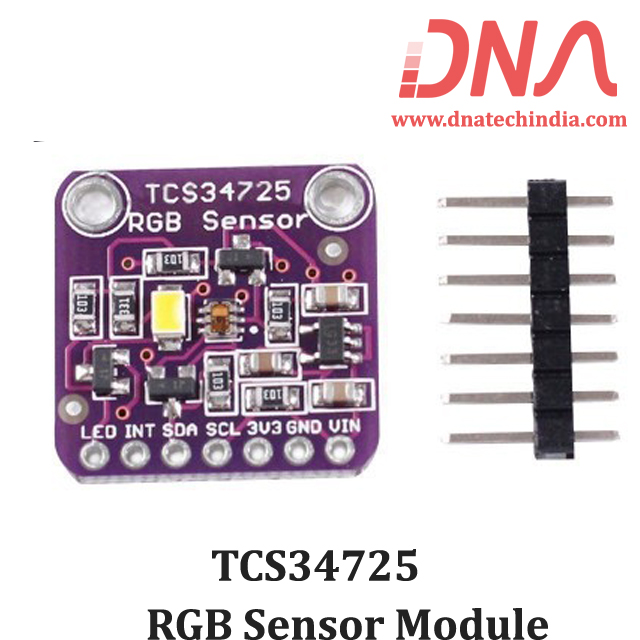

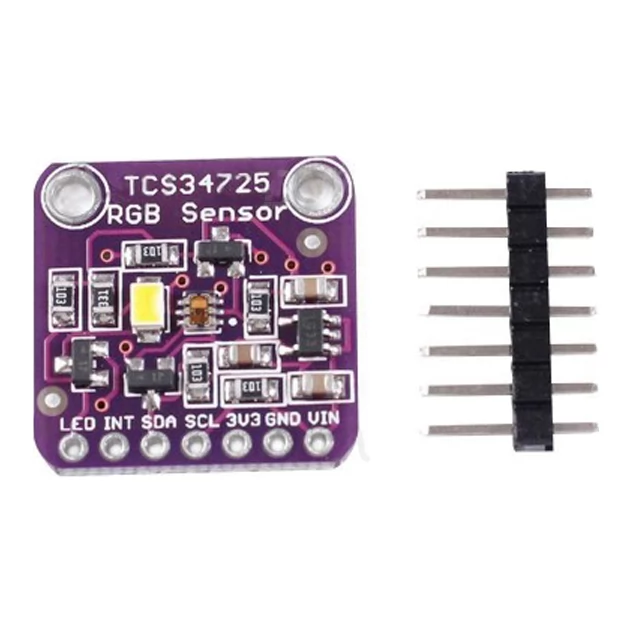

TCS34725 Color Sensor RGB Development Board Module

TCS34725 RGB Color Sensor Module with I2C Interface

The TCS3472 Color Sensor device provides a digital return of red, green, blue (RGB), and clear light sensing values. An IR blocking filter, integrated on-chip and localized to the color sensing photodiodes, minimizes the IR spectral component of the incoming light and allows color measurements to be made accurately.

The high sensitivity, wide dynamic range, and IR blocking filter make the TCS3472 an ideal color sensor solution for use under varying lighting conditions and through attenuating materials. This data is transferred via an I2C to the host.

Features of TCS34725 Color Sensor Module

• The TCS34725 device provides digital return values for red, green, blue (RGB) and bright light sensing

• Color management is more accurate

• IR shading filters make the TCS34725 ideal

Specifications of TCS34725 Color Sensor

• Operating Voltage : 3.3 Volts

• Supply Voltage : 3.3 - 5 Volts

• Length :  20mm

• Width : 20mm

• Weight : 10 g

Applications of TCS34725 Color Sensor

• RGB LED Backlight Control

• Light Color Temperature Measurement

• Ambient Light Sensing for Display Backlight Control

• Fluid and Gas Analysis

• Product Color Verification and Sorting

Related Links:

• ARDUINO AND TCS34725 COLOR SENSOR
• SENSING COLOR WITH THE ARDUINO AND THE TCS34725
• How to Connect a TCS34725 RGB Color Sensor With Raspberry Pi Zero W



Package Includes:

• 1 x CJMCU-34725 TCS34725 RGB Color Sensor Module for accurate digital color management
