STP90NF03 Power MOSFET

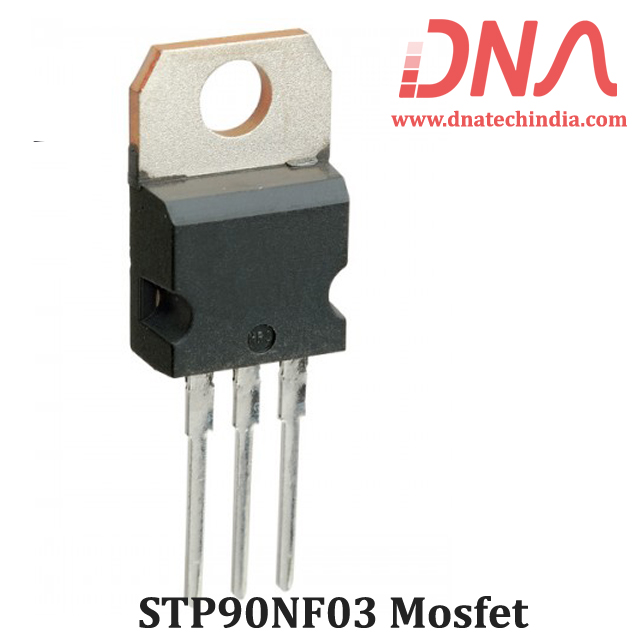

STMicroelectronics STP90NF03 Power MOSFET

STP90NF03 MOSFET offers low conduction and switching losses with a maximum VDS of 30V and a continuous drain current of 90A.

The STMicroelectronics STP90NF03 Power MOSFET is designed for high-efficiency applications, especially in buck regulators. This third-generation MOSFET provides an optimal balance between on-resistance and gate charge, making it ideal for motherboards where quick switching and efficiency are crucial. With a maximum drain-source voltage of 30V and a continuous drain current of 90A, it delivers reliable performance in demanding environments.

The STP90NF03 Power MOSFET reduces both conduction and switching losses, enhancing the overall energy efficiency of your circuit. It is suitable for a variety of applications, ensuring stable operation even at high temperatures. The junction temperature range of -65 to 175°C makes it versatile for different electronic designs.

For those looking to optimize their electronic projects, the STMicroelectronics STP90NF03 Power MOSFET stands out as a dependable choice. Explore how this component can enhance your designs and check our full range of MOSFET & IGBT products available at DNA Solutions.

At DNA Solutions, we offer a wide selection of MOSFET & IGBT components from trusted manufacturers like STMicroelectronics. Explore our inventory and discover reliable solutions for your electronic needs. Check other MOSFET & IGBT that we have in stock.

If you're searching for specific electronic components, DNA can help. We can import any unavailable parts and support both retail and bulk orders. Consider our range of related items like Digital ICs, HMI Displays, Sensor Modules, Microcontrollers, Super Capacitors, and Nextion Displays. Contact Us.

Features of STMicroelectronics STP90NF03 Power MOSFET

• Optimal RDS(on) x Qg trade-off
• Conduction losses reduced
• Switching losses reduced

Specification of STMicroelectronics STP90NF03 Power MOSFET

• VDS Drain-source voltage (VGS= 0) 30V
• VGS Gate-source voltage ± 20V
• ID Drain current (continuous) at TC= 25°C 90A
• ID Drain current (continuous) at TC= 100°C 65A
• IDM Drain current (pulsed) 360A
• PTOT Total dissipation at TC= 25°C 150W
• Derating factor 0.73 W/°C
• TJ Operating junction temperature -65 to 175°C
• Tstg Storage temperature 175°C

Applications of STMicroelectronics STP90NF03 Power MOSFET

• Buck regulators
• Motherboard power management
• High-efficiency switching circuits

Package Includes

• 1 X STMicroelectronics STP90NF03 Power MOSFET
