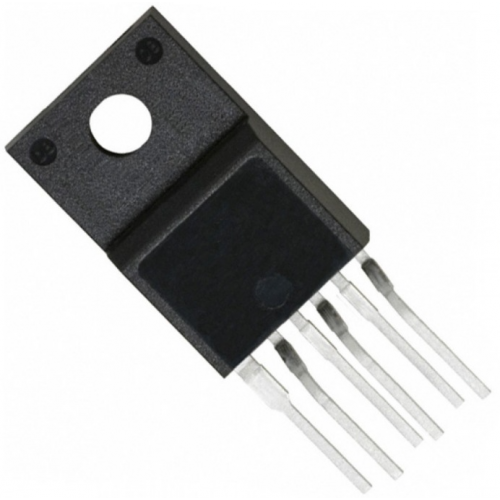

STRW6052S Integrated Power MOSFET with PWM Controller

STRW6052S: Energy-Saving Off-Line Switcher for Power Supply Applications

The STRW6052S is an integrated power device combining a high-voltage power MOSFET with a PWM control IC in a single package. Designed for use in low-standby-power, high-efficiency switch-mode power supplies, the STRW6052S features a quasi-resonant operation mode for reduced switching noise and improved performance. This device is ideal for AC-DC converters in TVs, monitors, set-top boxes, and other consumer electronics requiring reliable and efficient operation.

DNA is a trusted supplier of MOSFETs and power transistors in India, offering retail and bulk purchase options. We stock popular electronic components like BJTs, MOSFETs, and rectifier diodes, available for fast dispatch across India.

Can’t find the exact transistor or Electronic Component? Our team can help you source it,  click here to contact us.

Features of STRW6052S

• Integrated high-voltage MOSFET and PWM control IC
• Quasi-resonant operation for low EMI and high efficiency
• Low standby power consumption
• Built-in overload, overvoltage, and thermal protection
• Startup circuit reduces external components
• Compact package for efficient design

Specifications of STRW6052S

• Device Type: Integrated Power MOSFET with PWM Controller
• Drain-Source Voltage (V_DSS): 800 V
• Drain Current (I_D): 3.5 A
• On-Resistance (R_DS(on)): 1.9 Ω typ
• Operating Frequency: Quasi-Resonant
• Protections: OVP, OCP, OTP
• Package: DIP-8 with integrated MOSFET

Applications of STRW6052S

• Switch-mode power supplies (SMPS)
• AC-DC converters
• Power supplies for TVs, monitors, and set-top boxes
• Consumer electronics requiring high efficiency

Related Links

• STRW6052S Datasheet (PDF)
• Browse More MOSFETs & IGBTs

Package Include

• 1 x STRW6052S Integrated Power MOSFET with PWM Controller
