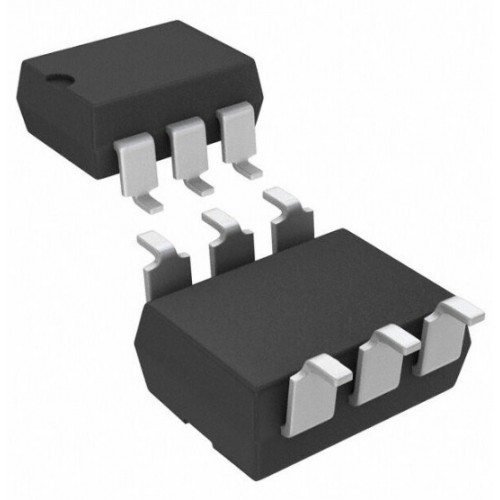

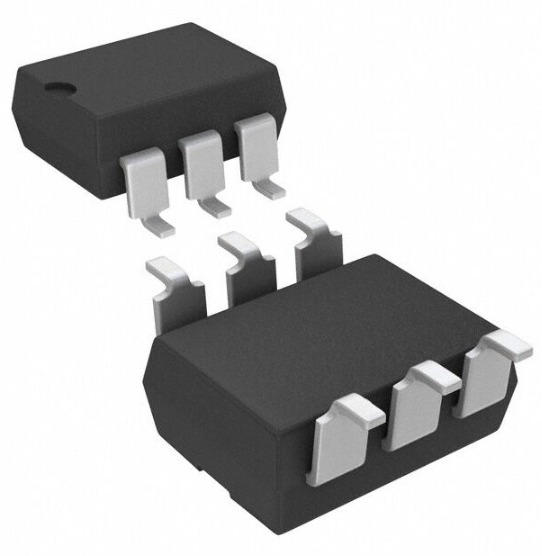

PVT412AS-TPBF MOSFET RELAY


Write a review | 1 reviews

  • Stock: Out Of Stock

    Availability: NotInStock priceValidUntil: 2026-10-23

  • SKU: 8121 | DAH106

Availability: NotInStock priceValidUntil: 2026-10-23

  • Rs. 683.93 (inc GST)
    Rs.579.60 + GST

    Qty :

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

PVT412AS-TPBF MOSFET Relay for AC and DC Applications

PVT412AS-TPBF MOSFET Relay, SPST-NO, Input Voltage 1.2 VDC, Load Voltage Range 0-400 V.

The PVT412AS-TPBF MOSFET Relay is a reliable solid-state relay designed for both AC and DC applications. It features photovoltaic technology and HEXFET® power MOSFET outputs, ensuring bounce-free operation and longer lifespan compared to mechanical relays. With an input voltage of 1.2 VDC and a load voltage range of 0 to 400 V, this relay is suited for various tasks, including telecommunications and general switching.

Designed with active current limiting circuitry, the PVT412AS-TPBF MOSFET Relay enhances reliability by protecting against overcurrent conditions. Its UL recognition assures compliance with safety standards, making it a dependable choice for electromechanical relay replacement. The device operates within a temperature range of -40°C to 85°C, catering to diverse environmental conditions.

Utilizing a 6-pin surface-mount technology package, the PVT412AS-TPBF MOSFET Relay is easy to integrate into existing systems. Explore the potential of this versatile relay that meets the demands of modern electronic applications.

Explore the range of MOSFET & IGBT products. The PVT412AS-TPBF by a trusted Manufacturer offers reliable performance. Discover how it can enhance your projects. Check other MOSFET & IGBT that we have in stock.

we cater to all your electronic component needs. If you can't find specific parts, we can assist with imports and support retail or bulk orders. Consider exploring related items like Crystal, Programmer, Transistor, Development boards, and Sensor Module. Contact Us.

Features of PVT412AS-TPBF MOSFET Relay

  • Active Current Limiting Circuitry
  • Linear AC/DC Operation
  • Bounce-Free Operation
  • Solid-State Reliability
  • UL Recognized

Specification of PVT412AS-TPBF MOSFET Relay

  • Input Voltage: 1.2 VDC
  • Load Voltage Range: 0 to 400 V
  • Load Current: Up to 240 mA
  • On-State Resistance (Max): 6 Ohms
  • Isolation Voltage: 4,000 V(rms)
  • Operating Temperature Range: -40°C to 85°C

Applications of PVT412AS-TPBF MOSFET Relay

  • Telecommunications
  • General Switching
  • Electromechanical Relay Replacement

Package Includes

  • 1 X PVT412AS-TPBF MOSFET RELAY
Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
