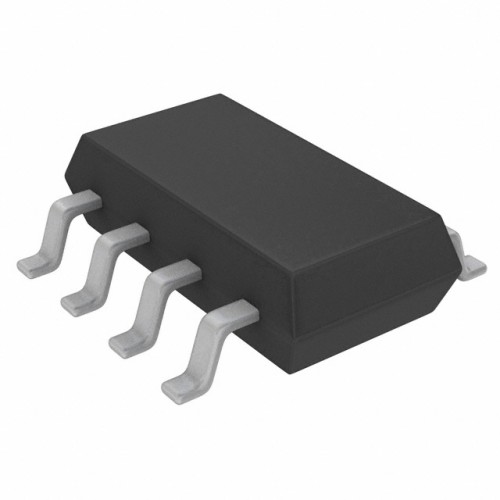

MP2315 Switch Mode Voltage Regulator SMD IC

MP2315 Switch Mode Voltage Regulator SMD IC

MP2315 Voltage Regulator SMD IC delivers 3A output, supports 4.5V to 24V input, and has integrated MOSFETs for efficiency.

The MP2315 Switch Mode Voltage Regulator SMD IC is a high-efficiency synchronous buck converter ideal for step-down DC-DC conversion. It operates with an input voltage range from 4.5V to 24V and can deliver up to 3A output current. This compact device features integrated high-side and low-side MOSFETs, ensuring a small footprint and high power density, making it suitable for space-constrained applications.

With a fixed switching frequency of 500kHz, the MP2315 provides excellent load and line regulation while minimizing the need for external components. It also includes essential protections such as thermal shutdown and over-current protection, ensuring reliable operation in demanding environments.

Applications for the MP2315 Switch Mode Voltage Regulator SMD IC include industrial control systems, consumer electronics, and battery-powered devices. This versatile regulator is a trusted choice for engineers looking to enhance performance and efficiency in their designs.

At DNA, we offer a wide range of Voltage Regulators from top manufacturers like MP2315. Explore our collection of Voltage Regulators to find the right solution for your needs. Check other "Voltage Regulators" that we have in stock.

If you are searching for specific electronic components, reach out to us. We can import items that are not available and support both retail and bulk orders. Consider exploring related items like Analog ICs, Connectors, Hongfa Relays, IGBTs, SMPS, and Transistors. Contact Us.

Features of MP2315 Switch Mode Voltage Regulator SMD IC

• Wide input voltage range: 4.5V to 24V
• Delivers up to 3A continuous output current
• Integrated high-side and low-side MOSFETs for high efficiency
• Adjustable output voltage down to 0.923V
• Fixed 500kHz switching frequency
• Soft-start function for controlled power-up

Specification of MP2315 Switch Mode Voltage Regulator SMD IC

• Input Voltage Range: 4.5V-24V
• Output Current: Up to 3A
• Switching Frequency: 500kHz
• Efficiency: Up to 95%
• Protection: OCP, Thermal Shutdown
• Operating Temperature: -40°C to +85°C

Applications of MP2315 Switch Mode Voltage Regulator SMD IC

• Industrial Control Systems
• Consumer Electronics
• Battery-Powered Devices
• Distributed Power Systems
• Networking Systems

Package Includes

• 1 X MP2315 Switch Mode Voltage Regulator SMD IC
