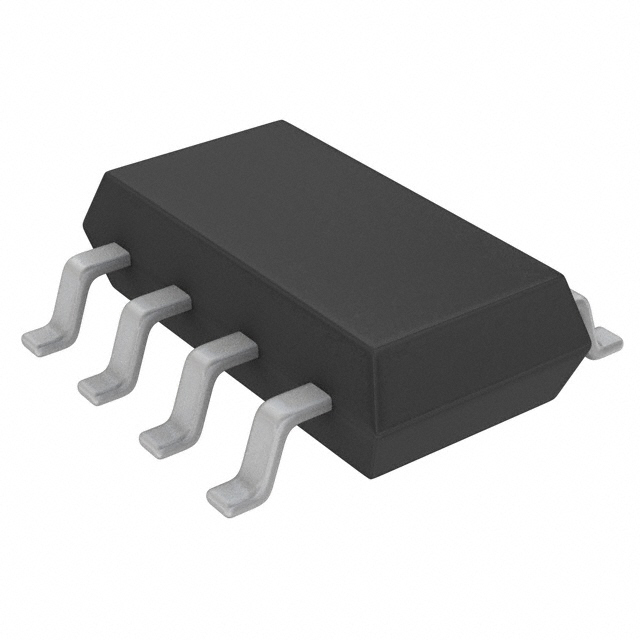

MP2315 Switch Mode Voltage Regulator SMD IC

MP2315 Switch Mode Voltage Regulator SMD IC

The MP2315 is a high-efficiency synchronous buck converter IC capable of delivering up to 3A output current. It supports a wide input voltage range from 4.5V to 24V, making it ideal for step-down DC-DC conversion. Integrated high-side and low-side MOSFETs ensure compact size and high power density. The device features 500kHz fixed switching frequency, thermal shutdown, and over-current protection. It provides excellent load and line regulation with minimal external components. Available in a compact SOT23-8 or SOIC-8 SMD package, it's perfect for space-constrained applications.

DNA solutions, Nashik has various types of Regulator IC's. Check out our complete collection of Regulator IC's.

• Wide input voltage range: 4.5V to 24V

• Delivers up to 3A continuous output current

• Integrated high-side and low-side MOSFETs for high efficiency

• Adjustable output voltage down to 0.923V

• Fixed 500kHz switching frequency

• Soft-start function for controlled power-up

Specifications of MP2315 Switch Mode Voltage Regulator SMD IC

• Input Voltage Range: 4.5V-24V

• Output Current: Up to 3A

• Switching Frequency: 500kHz

• Efficiency: Up to 95%

• Protection: OCP, Thermal Shutdown

• Operating Temperature: -40°C to +85°C

Applications of MP2315 Switch Mode Voltage Regulator SMD IC

• Industrial Control Systems

• Consumer Electronics

• Battery-Powered Devices

• Distributed Power Systems

• Networking Systems

Package Includes

      1 x MP2315 Switch Mode Voltage Regulator SMD IC
