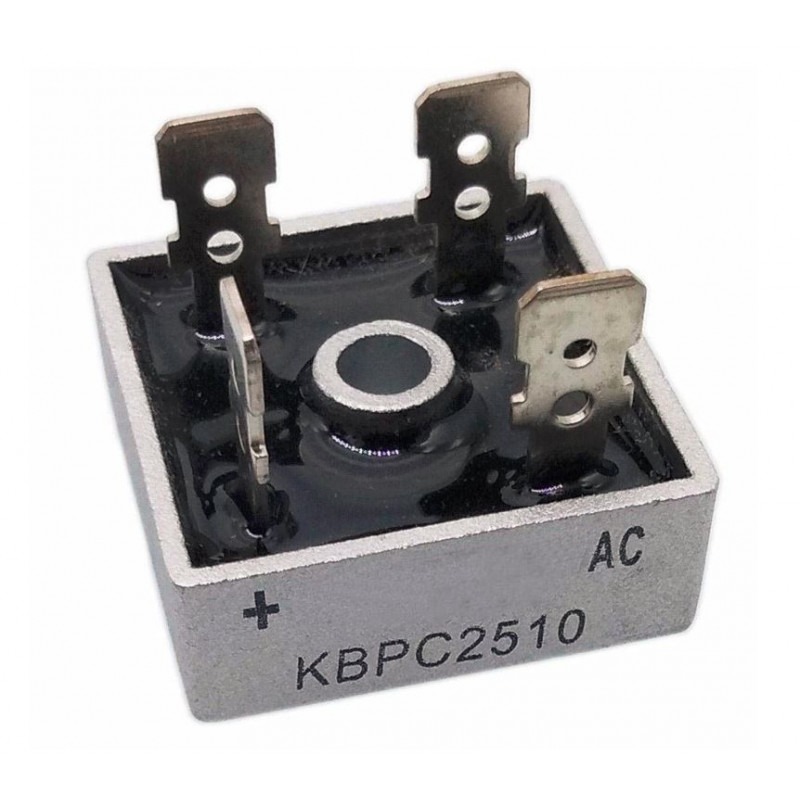

KBPC2510 Bridge Rectifier

KBPC2510 Bridge Rectifier

The KBPC2510 designed as a Silicon Single-Phase Bridge full-wave bridge rectifier with 1000V Peak Reverse Voltage. These are four terminals bridges, in which the anode and cathode labeled over the layer. They offer forward currents in the range of 25A.  KBPC2510 Bridge Rectifier is a highly reliable, with low-cost construction technique utilizing the molded plastic technique. Moreover, it features low revere leakage current, low power loss with high efficiency. And also the electric Current permitted during both positive and negative half cycles of the input AC signal.

DNA solutions, Nashik has various types of Bridge Rectifier's. Check out our complete collection of Bridge Rectifier's.

• Diffused Junction

• Low  Reverse  Leakage  Current

• Low Power Loss, High Efficiency.

• Electrically Isolated Metal Case for Maximum Heat Dissipation

• Case to Terminal Isolation Voltage 2500V

• Low thermal resistance.

• High isolation voltage from case to lugs.

Specifications of KBPC2510 Bridge Rectifier

• Maximum Repetitive Peak Reverse Voltage (Vrrm): 1000V

• Maximum Average Forward Rectified Current (If(av)): 25A

• Peak Forward Surge Current (Ifsm): 400A (8.3ms single half-sine wave)

• Forward Voltage Drop (Vf): 1.1V per diode at 12.5A

• Reverse Current (Ir): 10µA at 25°C, 500µA at 100°C (typical values)

• Operating Temperature Range: -55°C to +150°C

Package Includes

• 1 x KBPC2510 Bridge Rectifier
