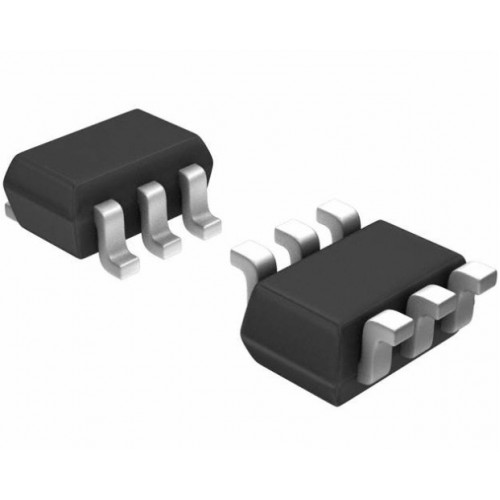

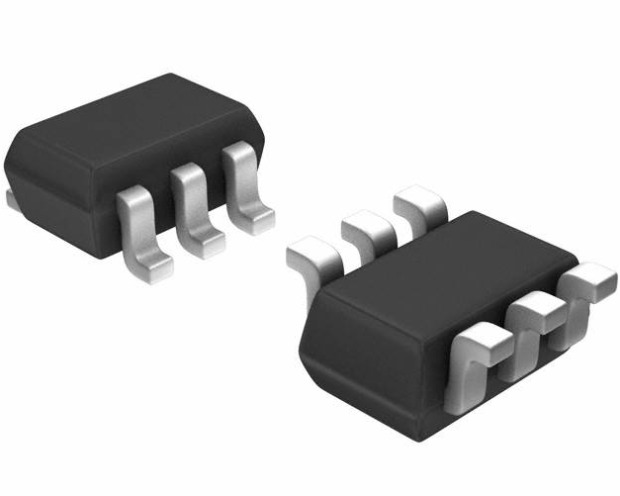

Product Images are shown for illustrative purposes only and may differ from actual product.

NC7WZ04P6X Inverter IC 2 Channel SC-88 SMD IC


Write a review | 3 reviews

  • Stock: Out Of Stock

    Availability: NotInStock priceValidUntil: 2026-03-12

  • SKU: 8226 | DAH837

Availability: NotInStock priceValidUntil: 2026-03-12

  • Rs. 25.62 (inc GST)
    Rs.21.71 + GST

    Qty :

GST Invoice: Available for all purchases — eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need more quantity or not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

NC7WZ04P6X Inverter IC 2 Channel SC-88 SMD IC

NC7WZ04P6X Inverter IC 2 Channel SC-88 SMD IC

The NC7WZ04P6X is a high-performance, dual-channel inverter IC manufactured by ON Semiconductor. It belongs to the Ultra-High-Speed (UHS) series, designed for low voltage and high-speed applications. The IC is housed in a compact SC-88 (SOT-363) package, making it suitable for space-constrained designs.

DNA solutions, Nashik has various types of Inverter IC's. Check out our complete collection of Inverter IC's.

If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features of NC7WZ04P6X Inverter IC 2 Channel SC-88 SMD IC

  • Dual Independent Inverters: The IC includes two independent inverter gates
  • Ultra-High-Speed Performance: Designed for minimal propagation delays
  • CMOS-Compatible Inputs: High input compatibility for CMOS logic systems
  • Compact SC-88 Package: Space-saving and suitable for portable or dense PCB designs
  • ESD Protection: Robust Electrostatic Discharge (ESD) protection enhances reliability
  • RoHS Compliant: Environmentally friendly, meeting lead-free standards

Specifications of NC7WZ04P6X Inverter IC 2 Channel SC-88 SMD IC

  • Supply Voltage (Vcc): 1.65V to 5.5V
  • Input Voltage (Vin): 0V to 5.5V
  • Output Voltage (Vout): 0V to Vcc
  • Operating Temperature Range: -40°C to +85°C
  • Package Type: SC-88 (SOT-363), 6-pin
  • Logic Gates: 2 independent inverters
  • ESD Protection: Built-in for reliability

Applications of NC7WZ04P6X Inverter IC 2 Channel SC-88 SMD IC

  • Consumer Electronics
  • Data Communication Systems
  • General Purpose Logic Functions
  • Portable Electronics
  • Logic Signal Inversion

    Package Includes

          1 x NC7WZ04P6X Inverter IC 2 Channel SC-88 SMD IC

    Extra Information
    Country of Origin China
    Imported By ElectroSource Private Limited
