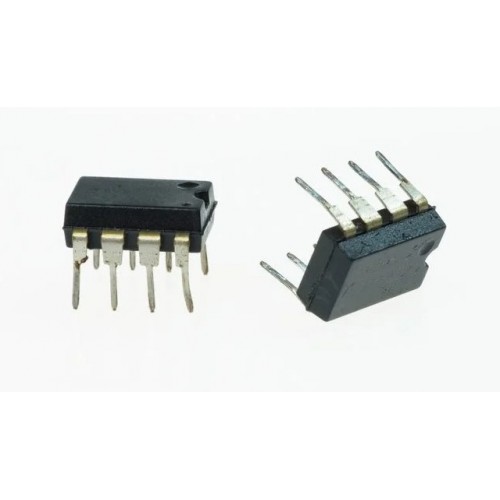

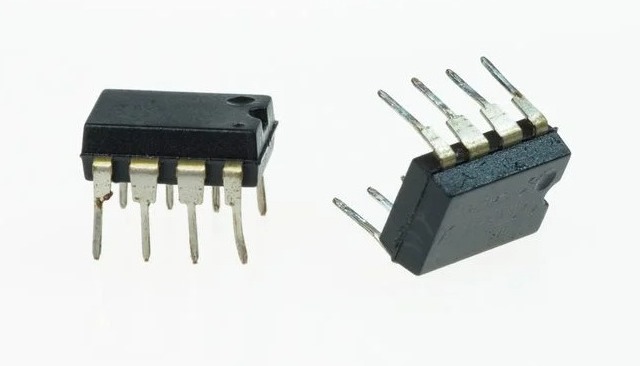

NE5532 Operational Amplifier DIP IC
- Stock: 23
- SKU: 8093 | DAH168
-
Rs. 28.32 (inc GST)
Rs.24.00 + GSTQty :
GST Invoice: Available for all purchases — eligible for input tax credit.
Delivery: 2–8 days across India. No MOQ required.
Bulk Orders: Need more quantity or not in stock? Email: dnatechindia [at] gmail.com
Import Service: We import a wide range of electronic components on request.
NE5532 Operational Amplifier DIP IC
NE5532 Operational Amplifier DIP IC
The NE5532 is a high-performance dual operational amplifier IC that offers low noise, high gain, and high output drive capability. Designed for audio preamplifiers, active filters, and other audio-related applications, it provides excellent performance with low distortion. The IC is widely used in consumer electronics, professional audio equipment, and instrumentation circuits.
DNA solutions, Nashik has various types of IC's. Check out our complete collection of IC's.
If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India. |
Features of NE5532 Operational Amplifier DIP IC
- Low Noise: Extremely low noise performance, making it ideal for audio applications
- High Gain: High gain-bandwidth product, typically 10 MHz
- Low Distortion: Low total harmonic distortion (THD) for high-fidelity audio
- Dual Op-Amp Configuration: Two operational amplifiers in one package
- High Slew Rate: Typical slew rate of 9 V/μs ensures fast signal response
- Wide Supply Voltage Range: Operates on ±3V to ±20V for versatility
- High Output Drive Capability: Can drive loads as low as 600 ohms
Specifications of NE5532 Operational Amplifier DIP IC
- Power Supply Voltage: ±3V to ±20V
- Input Offset Voltage: Typically 0.5 mV
- Input Bias Current: 200 nA (typical)
- Input Impedance: 300 kΩ
- Gain Bandwidth Product: 10 MHz
- Slew Rate: 9 V/μs
- Output Voltage Swing: ±12V (at ±15V supply)
- Output Current: 38 mA maximum
Applications of NE5532 Operational Amplifier DIP IC
- Audio Preamplifiers
- Active Filters
- Tone Control Circuits
- Headphone Amplifiers
- Signal Conditioning
- Audio Mixers
Package Includes
1 x NE5532 Operational Amplifier DIP IC
