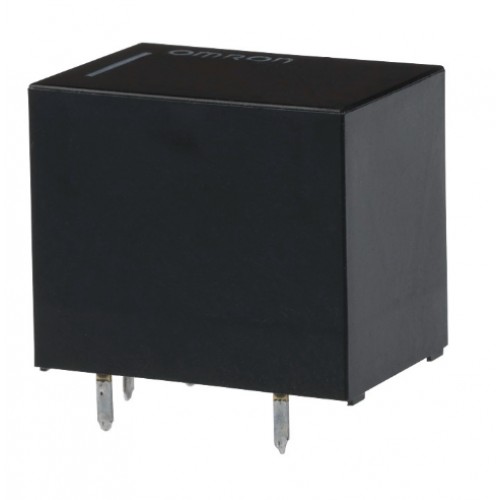

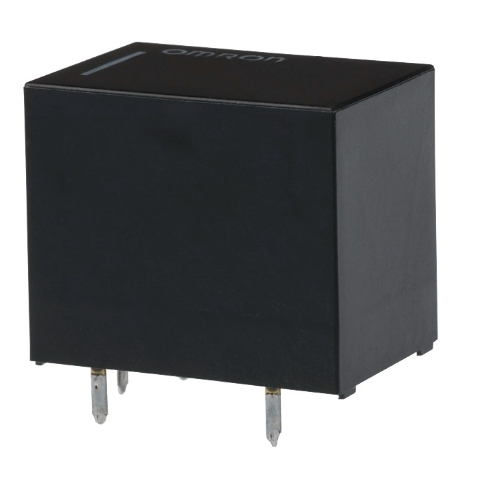

Omron G5LE-1-36 DC5 PCB Power Relay with SPDT Changeover

  • Stock: 63

    Availability: InStock priceValidUntil: 2026-12-04

  • Brand: Omron
  • SKU: 10829 | DAK033

Availability: InStock priceValidUntil: 2026-12-04

  • Rs. 230.10 (inc GST)
    Rs.195.00 + GST
    Qty :

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

Omron G5LE-1-36 DC5 PCB Power Relay with SPDT Changeover

Omron G5LE-1-36 DC5 SPDT PCB power relay with a 5 VDC coil and resistive load ratings of 10 A at 120 VAC or 8 A at 30 VDC.

Omron G5LE-1-36 DC5 is a PCB power relay with an SPDT changeover contact and a 5 VDC coil. It switches resistive loads up to 10 A at 120 VAC or 8 A at 30 VDC. This 5 VDC PCB power relay suits boards that need a separate coil and contact circuit.
PCB terminals support direct board mounting. The relay uses cadmium-free Ag-alloy contacts and has a flux-protected enclosure. It is RoHS compliant, and the standard model uses UL Class B coil insulation.
Use this relay in home appliances, office automation equipment and vending machines. Its single-pole changeover function lets one common connection switch between two contact paths.
Shop Omron relays at DNA for board-level switching needs. Browse Relay, Relay Socket & SSR options for appliance, office automation and vending equipment designs. Check other Relay, Relay Socket & SSR that we have in stock
If you cannot find a part, contact DNA for help with sourcing and import support. We support retail and bulk orders across India. You can also ask about Development Module, Programmer, Power Supply, SMPS, Digital IC and Analog IC products. Contact Us

Features of Omron G5LE-1-36 DC5 PCB Power Relay with SPDT Changeover

  • SPDT changeover contact for single-pole switching
  • PCB terminals for board mounting
  • Cadmium-free Ag-alloy contacts
  • Flux-protected enclosure for the G5LE-1 configuration
  • RoHS-compliant construction
  • UL Class B coil insulation in the standard model

Specifications of Omron G5LE-1-36 DC5 PCB Power Relay with SPDT Changeover

  • Rated coil voltage: 5 VDC
  • Contact form: SPDT (1c), single pole
  • Rated resistive load: 10 A at 120 VAC
  • Rated resistive load: 8 A at 30 VDC
  • Maximum switching voltage: 250 VAC or 125 VDC (30 VDC for UL/CSA standards)
  • Ambient operating temperature: -25°C to 85°C, with no icing or condensation
  • Maximum dimensions: 22.5 × 16.5 × 19.0 mm

Applications of Omron G5LE-1-36 DC5 PCB Power Relay with SPDT Changeover

  • Home appliances
  • Office automation equipment
  • Vending machines

Related Links for Omron G5LE-1-36 DC5 PCB Power Relay with SPDT Changeover

Package Includes

  • 1 X Omron G5LE-1-36 DC5 PCB Power Relay with SPDT Changeover
Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
