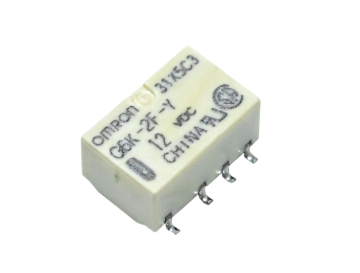

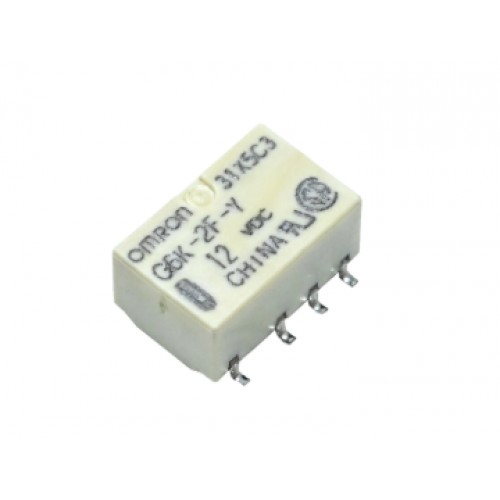

Product Images are shown for illustrative purposes only and may differ from actual product.

Omron G6K-2F-Y-TR-12V 12 VDC DPDT PCB Signal Relay

  • Stock: 50

    Availability: InStock priceValidUntil: 2026-12-17

  • Brand: Omron
  • SKU: 11214 | DAK437

Availability: InStock priceValidUntil: 2026-12-17

  • Rs. 115.05 (inc GST)
    Rs.97.50 + GST
    Qty :

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

Omron G6K-2F-Y-TR-12V 12 VDC DPDT PCB Signal Relay

Omron G6K-2F-Y-TR-12V DPDT PCB signal relay with a 12 VDC coil, sealed construction and surface-mount terminals.

The Omron G6K-2F-Y-TR-12V is a fully sealed, single-side stable DPDT PCB signal relay with a 12 VDC coil and surface-mount terminals. It switches two contact poles and supports resistive loads of 0.3 A at 125 VAC or 1 A at 30 VDC.
Its bifurcated crossbar contacts use Au-alloy contact material. The sealed body helps protect the contact system, while the surface-mount terminal design suits compact PCB layouts. The Y terminal arrangement also provides coil-to-contact impulse withstand capability.
Use this 12 VDC DPDT relay in telecommunication equipment, office automation machines, measuring instruments and other supported control equipment. Its two-pole switching function can control separate signal paths from one PCB-mounted component.
Find Omron relay products at DNA for PCB signal switching and control designs. Explore our range in Relay, Relay Socket & SSR. Check other Relay, Relay Socket & SSR that we have in stock
If you cannot find the part you need, contact DNA for import support. We serve Indian electronics buyers with retail and bulk orders. You can also ask about Resistors, IGBTs, Crystals, Microcontrollers, Power Supplies and Digital ICs. Contact Us

Features of Omron G6K-2F-Y-TR-12V 12 VDC DPDT PCB Signal Relay

  • Fully sealed construction
  • Bifurcated crossbar contacts with Au-alloy contact material
  • Two-pole DPDT switching
  • Surface-mount terminals for PCB assembly
  • Y terminal arrangement for coil-to-contact impulse withstand

Specifications of Omron G6K-2F-Y-TR-12V 12 VDC DPDT PCB Signal Relay

  • Rated coil voltage: 12 VDC
  • Rated contact load: 0.3 A at 125 VAC or 1 A at 30 VDC, resistive load
  • Maximum switching current: 1 A, standard model
  • Maximum switching voltage: 125 VAC or 60 VDC
  • Ambient operating temperature: -40 to +85°C, with no icing or condensation
  • Dimensions: 10 × 6.5 × 5.2 mm (length × width × height)
  • Insulation resistance: 1,000 MΩ minimum at 500 VDC
  • Coil-to-contact impulse withstand: 2,500 V for 2 × 10 μs or 1,500 V for 10 × 160 μs

Applications of Omron G6K-2F-Y-TR-12V 12 VDC DPDT PCB Signal Relay

  • Telecommunication equipment
  • Office automation machines
  • Measuring instruments
  • Industrial equipment

Related Links for Omron G6K-2F-Y-TR-12V 12 VDC DPDT PCB Signal Relay

Package Includes

  • 1 X Omron G6K-2F-Y-TR-12V 12 VDC DPDT PCB Signal Relay
Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
