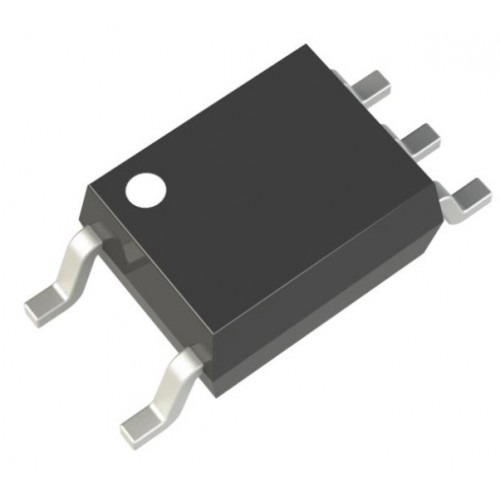

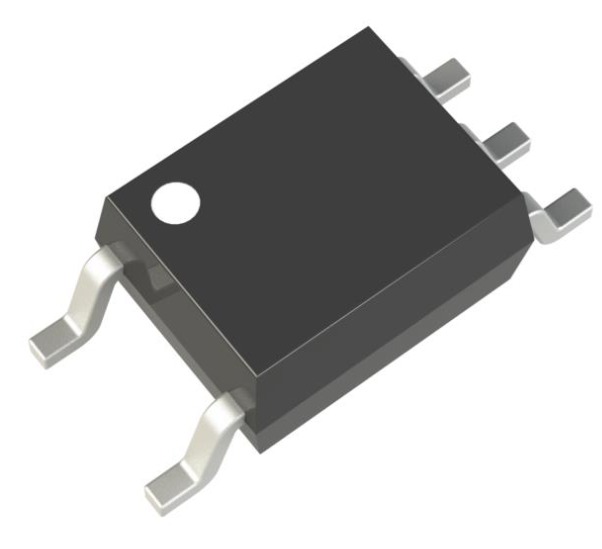

PS9214 Logic Output Optoisolator SMD IC

Write a review | 0 reviews

Stock: 5
Availability: InStock priceValidUntil: 2026-08-30
SKU: 8960 | DAI244

Rs. 699.62 (inc GST)
Rs.592.90 + GST

Qty :
Qty Qty

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

Description

PS9214 Logic Output Optoisolator SMD IC

PS9214 Logic Output Optoisolator SMD IC with high-speed logic output, 3750 Vrms isolation voltage, and compact SMD package.

The PS9214 Logic Output Optoisolator SMD IC offers reliable signal isolation for various electronic applications. It features a high-efficiency LED and photodiode-triode detector, ensuring fast signal transfer while protecting against electrical disturbances. This component is ideal for microcontroller and logic signal isolation, making it a valuable addition to your project.

Designed for high-speed data communication, this optoisolator operates within a voltage range of 3V to 5.5V, providing flexibility for different circuits. Its compact SMD package allows for easy integration into space-constrained designs. With an isolation voltage of 3750 Vrms, it ensures safety in industrial automation and switching power supplies.

Incorporate the PS9214 Logic Output Optoisolator SMD IC into your designs for enhanced signal integrity. Whether for digital systems or industrial applications, this component delivers performance and reliability while protecting against voltage spikes and noise.

Explore our range of OptoCouplers & OptoIsolators at DNA. The PS9214 Logic Output Optoisolator SMD IC is perfect for signal isolation. Browse through our extensive selection of similar products in this category. Check other "OptoCouplers & OptoIsolators" that we have in stock.

At DNA, we cater to all your electronic component needs. If you can't find specific parts, reach out to us. We can import items and support both retail and bulk orders. Check out our range of Microcontrollers, Sensors, and more. Contact Us.

Features of PS9214 Logic Output Optoisolator SMD IC

High-speed logic output
High isolation voltage
Compact SMD package
Low input current
CMOS and TTL compatible output

Specification of PS9214 Logic Output Optoisolator SMD IC

Input Type: Infrared LED
Output Type: Photodiode with Logic Output
Operating Voltage: 3V to 5.5V
Isolation Voltage: 3750 Vrms
Package: SMD (Surface Mount Device)

Applications of PS9214 Logic Output Optoisolator SMD IC

Microcontroller and Logic Signal Isolation
Switching Power Supplies
Industrial Automation Equipment
High-speed Data Communication Isolation
Protecting Digital Systems from High Voltage

Package Includes

1 X PS9214 Logic Output Optoisolator SMD IC

Extra Information
Country of Origin	China
Imported By	ElectroSource Private Limited
