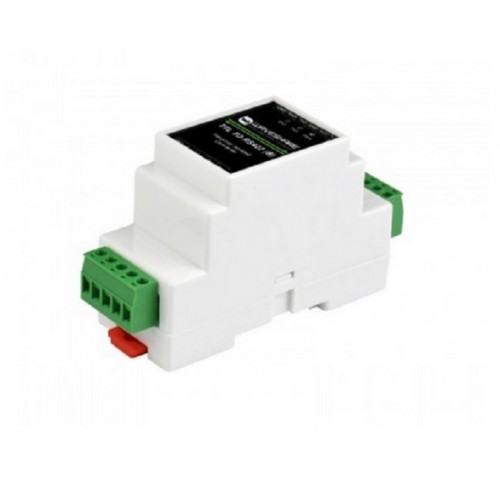

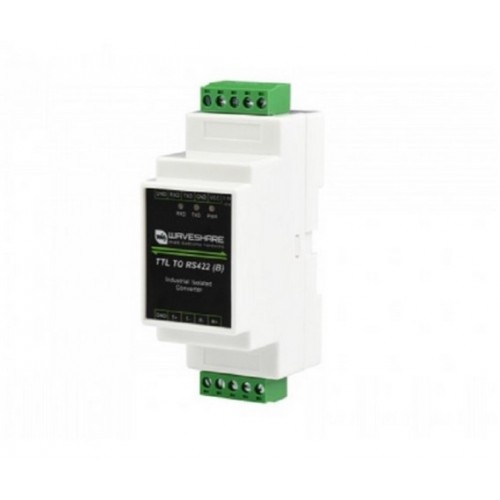

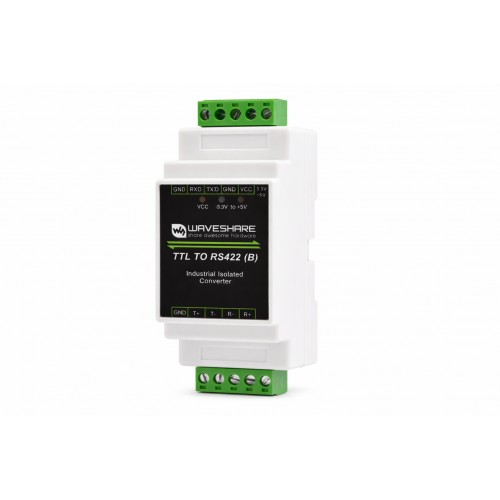

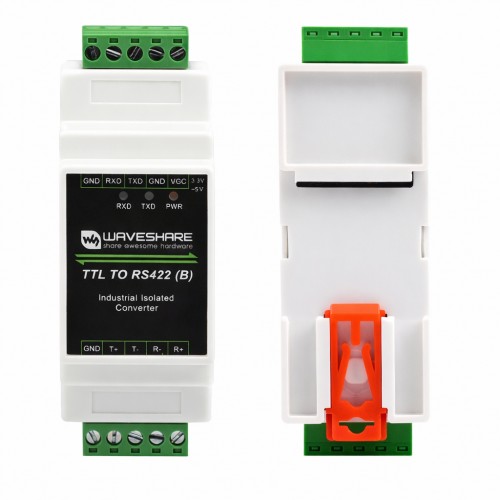

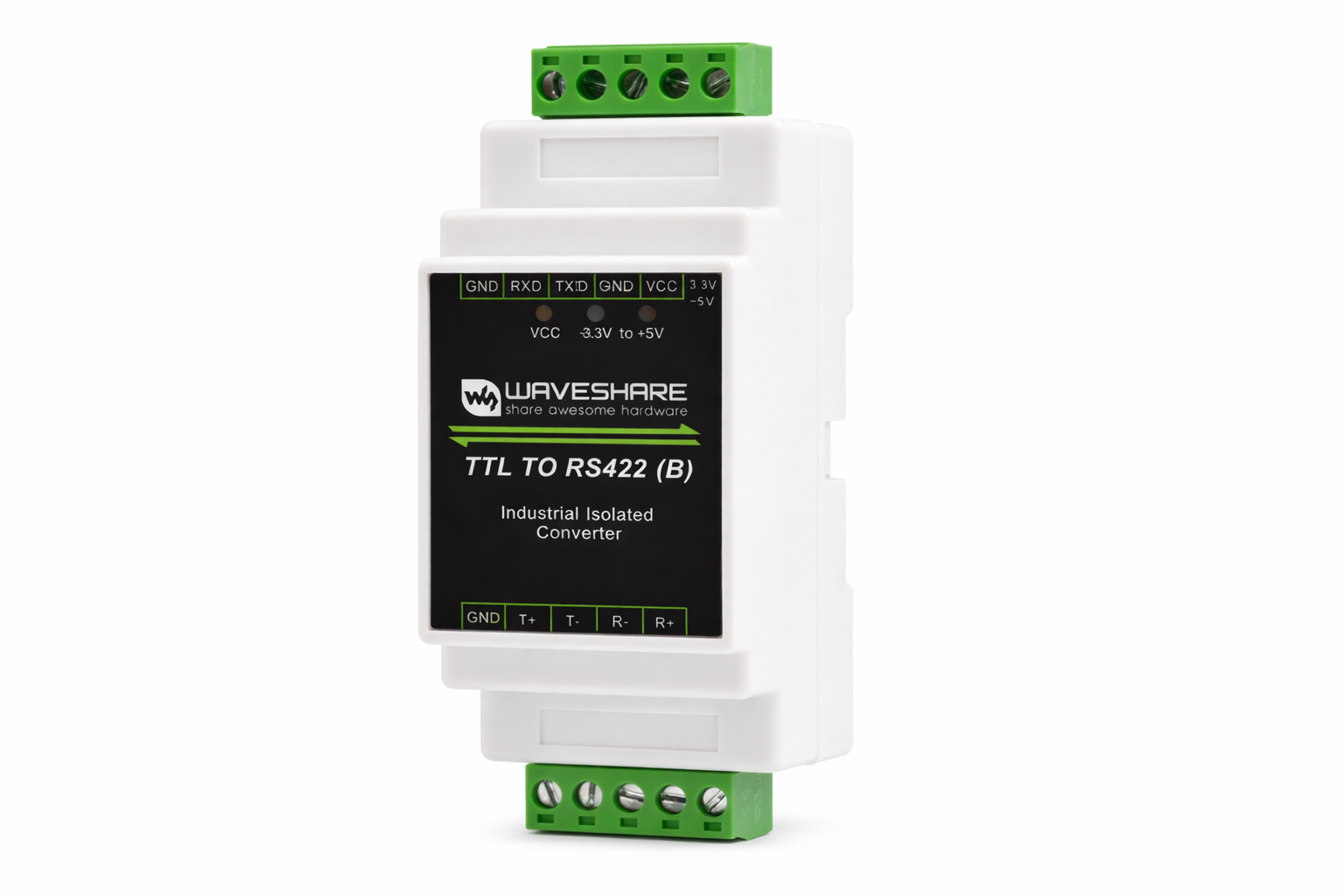

Rail-Mount TTL To RS422 Galvanic Isolated Converter, Anti-surge, Multiple Isolation Protection

Rail-Mount TTL To RS422 Galvanic Isolated Converter, Anti-surge, Multiple Isolation Protection

Rail-Mount TTL To RS422 Galvanic Isolated Converter, Anti-surge, Multiple Isolation Protection

The Rail-Mount TTL to RS422 Galvanic Isolated Converter is Onboard power and signal isolation, provide stable isolated voltage, high reliability and strong anti-interference. Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, anti-electrostatic. Onboard resettable fuse and protection diodes, ensures the current/voltage stable outputs, provides over-current/over-voltage protection, improves shock resistance. TTL TO RS422 (B) is an industrial-grade rail-mounted electrically isolated TTL-to-RS485 serial converter.

DNA solutions, Nashik has various types of Converter's. Check out our complete collection of Converter's.

• Compatible with TTL/RS422 standard, converting the TTL signal into differential RS422 signal, support full duplex communication

• Compatible with 3.3V ~ 5V TTL signal level, provides anti-reverse and over-voltage protection for power supply interface

• Onboard unibody power supply isolation, provides stable isolated voltage and needs no extra power supply for the isolated terminal

• Onboard unibody digital isolation, allows signal isolation, high reliability, strong anti-interference, low power consumption

• Onboard TVS (Transient Voltage Suppressor), effectively suppresses surge voltage and transient spike voltage in the circuit, anti-electrostatic

• Onboard resettable fuse and protection diodes, ensures the current/voltage stable outputs, provide over-current/over-voltage protection, improve shock resistance

Specifications of Rail-Mount TTL To RS422 Galvanic Isolated Converter, Anti-surge, Multiple Isolation Protection

• Model Type: Converter

• Power Supply: 3.3V ~ 5V

• Connector: Screw terminal

• Resistor: 120R

• Transmission Distance: About 1.2km

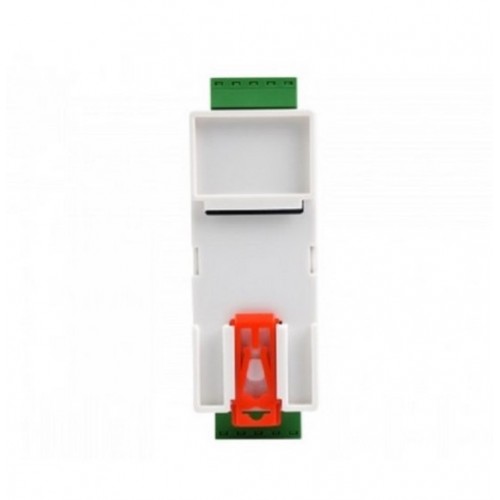

• Mounting: DIN rail

• Connectors: Terminal block or screw-type for signal and power

Applications of Rail-Mount TTL To RS422 Galvanic Isolated Converter, Anti-surge, Multiple Isolation Protection

• Industrial automation and control systems

• RS422-compatible PLCs and HMIs

• Long-distance serial communication

• Data acquisition and logging systems

• Microcontroller or Arduino/ESP-based control over RS422 bus

• Electrical isolation for noise-sensitive communication lines

Package Includes

      1 x Rail-Mount TTL To RS422 Galvanic Isolated Converter, Anti-surge, Multiple Isolation Protection
