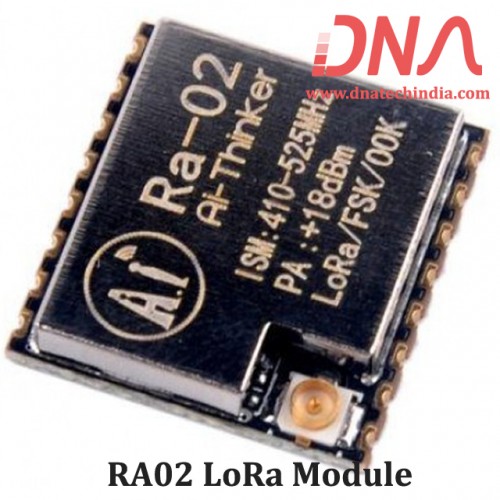

RA02 LoRa Module

433Mhz RA02 LoRa Module

433 Mhz Long Range Wireless LoRA Module

LoRa Modules are long range low power RF Modules. Great for IoT applications to send sensor data to the cloud over long ranges.

Developed by Ai-Thinker, the manufacturer of the ESP8266 and ESP32 wifi modules, this Ra-02 LoRa (Long-range Radio) module will take your IoT projects the distance with communication over a long-range spread spectrum. This form of wireless communication results in a larger bandwidth, increasing interference resistance, minimizing current consumption, and increasing security.

This module uses SX1278 IC from SEMTECH and works on a 433MHz frequency. Frequency hopping—which gives you that sweet balance of quality signal transmission will cover a range of 420-450 MHz. This long range wireless capability is packed into a small (17 x 16mm) package and delivered without an antenna.

With the LoRa Ra-02, you don’t have to compromise in the balance of range, interference immunity, or energy consumption. The technology behind this IC means that it's perfect for those projects requiring range and strength.

We have Various sizes of  Modules. Check out our complete collection of  Modules

Features of RA02 433Mhz LoRa Module

• LoRaTM spread spectrum communication

• +20dBm - 10mW. Stable RF output power when input voltage changed

• Half-duplex SPI communication

• Programmable bit rate can reach to 300kbps

• Support FSK, GFSK, MSK, GMSK, LoRaTM and OOK Modulation Mode

• 127dB RSSI wave range.

• Automatically detect RF signal, CAD mode and super high speed AFC

• With CRC 256 bytes data engine

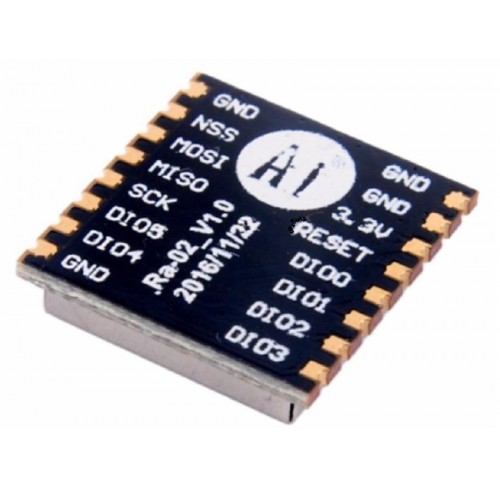

• Half hole (castellated hole) SMD package

• With metal shielding case

• Wireless Standard : 433MHz

• Frequency range : 420 - 450MHz

• Port : SPI/GPIO

• Operating Voltage : 1.8 - 3.7V, default 3.3V

• Working Current, receive : less than 10.8mA(LnaBoost closed, Band 1)

• Transmit : less than 120mA(+20dBm),

• Sleep model : 0.2uA

• Working temperature : -40- +85 degrees

Applications of RA02 LoRa Module

• Remote control and data collection system

• AMR(water meter, ammeter and gas meter) automated meter reading

• Wireless handheld unit, oil field, mining area, construction site, factory

• Industrial data collection, transmission and intelligent control

• Wireless alarm system

• Smart home system

• Baby monitor, Hospital calling system

• Small size wireless data terminal
