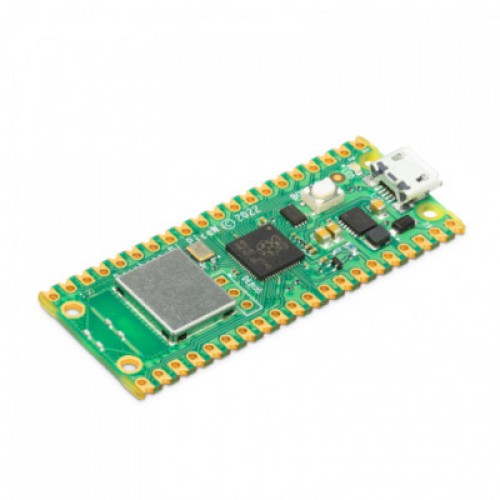

Raspberry Pi Pico W

Raspberry Pi Pico W

Network your Pico for a complete IoT solution. Raspberry Pi Pico W comes with a fully certified module on board featuring 2.4GHz 802.11n wireless LAN, making it the perfect solution for loT applications and projects requiring wireless communication.

Yes you heard it right PICO now has been improved by including a 2.4GHz wireless interface while keeping the same form factor as the previous one, and a New variant of PICO has arrived with the name Raspberry PI PICO W and included the significant features listed below.

At the heart of each product is RP2040, a Raspberry Pi-designed chip, which features two

ARM Cortex-M0+ cores clocked at 133MHz; 256KB

• Micro USB B port for power and data (and for reprogramming the flash)


• RP2040 microcontroller with 2MB of flash memory


• On-board single-band 2.4GHz wireless interfaces (802.11n)


• 40 pin 21mmx51mm DIP style 1mm thick PCB with 0.1 through-hole pins also with edge castellations


• Can be surface mounted as a module


• 3-pin ARM serial wire debug (SWD) port


• Simple yet highly flexible power supply architecture


• Exposes 26 multi-function 3.3V general purpose I/O (GPIO)


• 23 GPIO are digital-only, with three also being ADC capable


• Various options for easily powering the unit from micro USB, external supplies or batteries


• Dual-core Cortex M0+ at up to 133MHz


• On-chip PLL allows variable core frequency


• 264kByte multi-bank high-performance SRAM


• High quality, low cost, high availability


• Comprehensive SDK, software examples, and documentation

Specifications

• CPU : Dual-core Arm Cortex-M0+ @ 133MHz


• Brand: Raspberry Pi


• Memory : 264KB on-chip SRAM; 2MB onboard QSPI flash


• Input power : 1.8–5.5V DC


• Interfacing : 26 GPIO pins, including 3 analog inputs


• Connectivity : 2.4GHz IEEE 802.11b/g/n wireless LAN, on-board antenna


• Operating temperature : -20°C to +70°C


• Dimensions (mm) L x B : 21 mm × 51 mm


Package Includes

1 x Raspberry Pi Pico W
