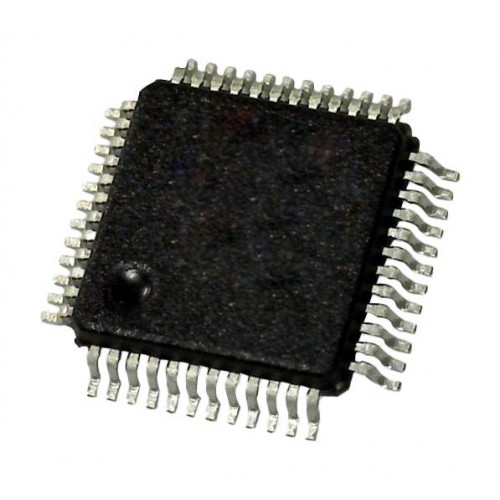

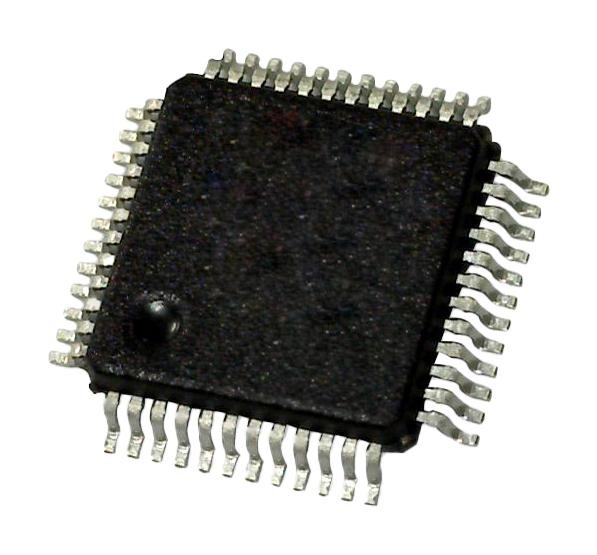

Renesas R7FA2L1A93CFL#AA0 32-Bit Arm Cortex-M23 Microcontroller

Stock: Out Of Stock
Availability: NotInStock priceValidUntil: 2026-11-05
Brand: Renesas
SKU: 11336 | DAH992

Rs. 263.91 (inc GST)
Rs.223.65 + GST

Qty :
Qty Qty

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

Description

Renesas R7FA2L1A93CFL#AA0 32-Bit Arm Cortex-M23 Microcontroller

R7FA2L1A93CFL#AA0 is a 32-bit Arm Cortex-M23 microcontroller with 48 MHz maximum frequency, 128 KB code flash and 32 KB SRAM.

The Renesas R7FA2L1A93CFL#AA0 is a 32-bit microcontroller with an Arm Cortex-M23 core. It runs at up to 48 MHz and has a recommended supply range of 1.6 to 5.5 V. Its on-chip memory includes code flash, data flash and SRAM.

The chip brings serial and CAN interfaces, analog inputs and outputs, timers, and capacitive sensing into one device. This mix can help reduce the number of separate parts in a control design. Low-power modes support designs that need to manage energy use, while built-in AES encryption and a true random number generator add security functions.

With these functions in one 48-pin LQFP microcontroller, the device gives engineers a range of control and interface options for embedded designs. Its broad supply range can also suit systems with different power needs.

DNA supplies Renesas MICROCONTROLLER parts for design, repair and production needs. Contact our team for help with this Renesas device and other MICROCONTROLLER options. Check other MICROCONTROLLER that we have in stock

If you cannot find a part, contact DNA for help. We support imports and retail or bulk orders for Indian electronics buyers. Ask us about related items such as power supplies, connectors, development boards and capacitors. Contact Us

Features of Renesas R7FA2L1A93CFL#AA0 32-Bit Arm Cortex-M23 Microcontroller

Integrated code flash, data flash and SRAM for program and working data
Serial, SPI, I2C and CAN interfaces support device communication
Capacitive sensing unit supports touch input
Integrated ADC, DAC, comparators and timers combine control functions
AES encryption and a true random number generator support security functions

Specifications of Renesas R7FA2L1A93CFL#AA0 32-Bit Arm Cortex-M23 Microcontroller

Core: 32-bit Arm Cortex-M23
Maximum operating frequency: 48 MHz in high-speed mode at VCC = AVCC0 = 1.8 to 5.5 V
Memory: 128 KB code flash, 8 KB data flash and 32 KB SRAM
Recommended supply voltage: 1.6 to 5.5 V with AVCC0 = VCC
Operating temperature: -40 to +105 °C
ADC: 12-bit with 9 analog input channels
Package: 48-pin LQFP

Package Includes

1 X Renesas R7FA2L1A93CFL#AA0 32-Bit Arm Cortex-M23 Microcontroller

Extra Information
Country of Origin	China
Imported By	ElectroSource Private Limited
