RS485 to TTL Serial Converter Module

RS485 to TTL Serial Converter Module

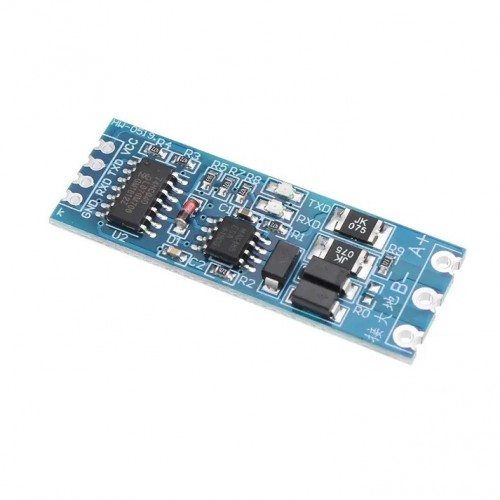

RS485 to TTL Converter Module Serial Port UART Hardware Automatic Flow Control Module is based of MAX485 chip, which is one of the most relied on when working with RS485 Bus. This module supports 3.3 V and 5V power supplies, and TTL Levels. It can connect and identify up to 128 nodes on the RS485 bus. This module also supports very long range of the bus.

This RS485 to TTL Converter Module can support up to 800 meter of bus length. It has connections for RX,TX, +ve and GND, on one side, and other side has connection for RS485 bus. It also has the Indicators for the Receive and Transmit Signals. And, the thickness of PCB is 0.8 mm, which enables it to be used as add-on on any of your PCBs or devices.

DNA solutions, Nashik has various types of Converter Module's. Check out our complete collection of  Converter Module's.

• The module is fully considered mine design, long-distance transmission signal 485 in the wild, the module “Connected to the ground” terminal is connected to the earth, can play a very good anti-jamming and anti- effect, more secure; it can not connect with the ground when the indoor short-distance transmission.


• Using the standard 2.54 pitch design, easy secondary development.


• Has a 120 ohm termination resistors, shorted R0 to enable the termination resistor.


• Support multi-machine communication, allowing access at up to 128 devices on the bus


• The module can be hot swapped, the signal does not appear dead phenomenon.


• A large area of copper to prevent interference.


• Compatible with 3.3V and 5.0V power supply.


Specifications of RS485 to TTL Serial Converter Module

• Supports 3.3 V and 5 V supply


• Max Bus Length Supported: 800 meter


• LED indicators for RX and TX

• PCB Thickness: 0.8 mm for easy use in compact devices


• Connector Pitch: 2.54 mm


Package Includes

• 1 x RS485 to TTL Serial Converter Module
