SMD 2 Pin Pullup Switch

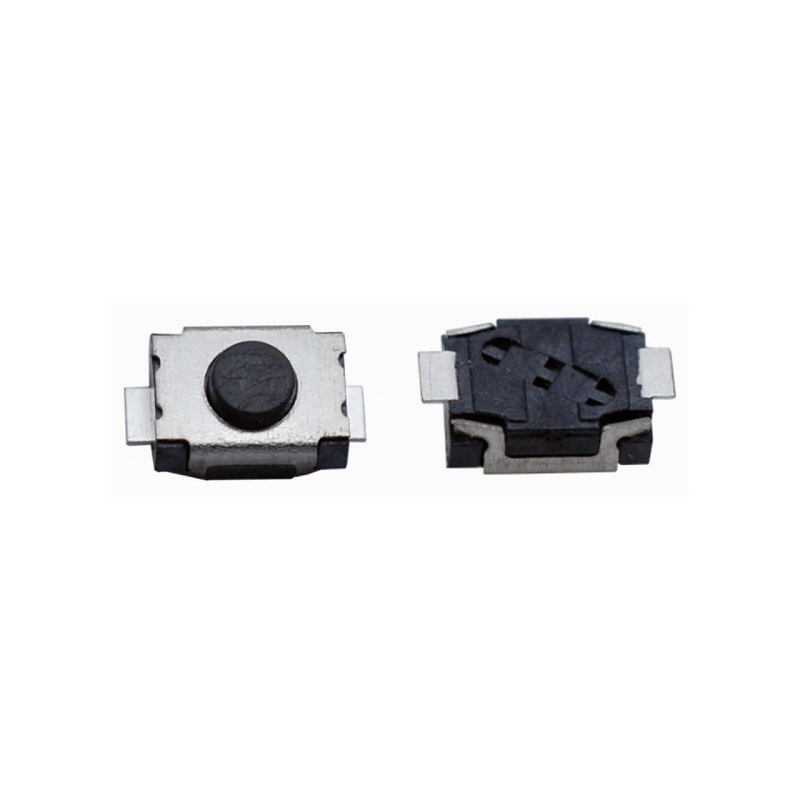

SMD 2 Pin Pullup Switch - Compact Tactile Switch

SMD 2 Pin Pullup Switch designed for digital signal triggering with 3.3V to 5V operation and small footprint.

The SMD 2 Pin Pullup Switch is a compact tactile switch ideal for digital signal triggering in embedded circuits. With a pull-up configuration, it easily integrates with microcontrollers, making it perfect for applications like reset buttons and mode selectors. Its low-profile design fits well in compact PCBs, ensuring durability and reliable actuation. This switch is fundamental in portable electronics and digital input interfaces.

Featuring a momentary actuation type and a contact resistance of ≤100mΩ, the SMD 2 Pin Pullup Switch ensures efficient performance. It operates typically between 3.3V to 5V, providing versatility in various electronic setups. Its tactile feedback enhances user experience, making it suitable for multiple applications in electronic assemblies.

For those seeking a reliable and compact switch, the SMD 2 Pin Pullup Switch is an excellent choice. It serves as a crucial component in modern electronics, facilitating seamless user input and signal triggering in microcontroller circuits.

Explore our range of PCB Mount Switches from top manufacturers at DNA. The SMD 2 Pin Pullup Switch is perfect for your electronic projects. Check other PCB Mount Switches that we have in stock.

If you can't find certain electronic components, reach out to us. We can import items that are not available and support you in both retail and bulk orders. Check out related items like Power Supply, Development Module, Crystal, LCD, and Microcontroller. Contact Us.

Features of SMD 2 Pin Pullup Switch

• Surface Mount Device (SMD) package
• 2-pin design for pull-up configuration
• Momentary tactile push-button functionality
• Small size suitable for compact PCB layouts
• Reliable actuation and tactile feedback

Specification of SMD 2 Pin Pullup Switch

• Type: Tactile push-button switch
• Mounting Type: SMD
• Number of Pins: 2
• Configuration: Pull-up
• Operating Voltage: 3.3V to 5V (typical)
• Actuation Type: Momentary
• Contact Resistance: ≤100mΩ

Applications of SMD 2 Pin Pullup Switch

• Reset or power control in embedded systems
• Mode or function selection in compact devices
• User input interface in portable electronics
• Signal triggering in microcontroller circuits

Package Includes

• 1 X SMD 2 Pin Pullup Switch
