SN75176 Differential Bus Transceiver DIP IC

SN75176 Differential Bus Transceiver DIP IC

SN75176 Differential Bus Transceiver for RS-485/RS-422 with 10 Mbps data rate and support for 32 nodes.

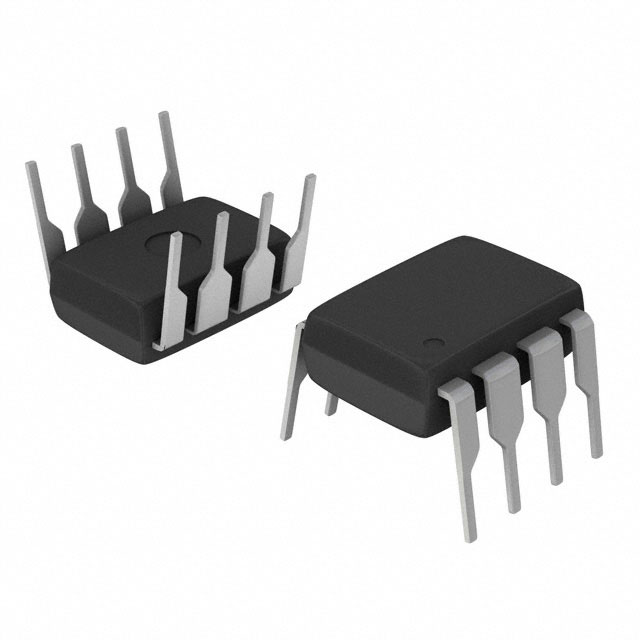

The SN75176 Differential Bus Transceiver DIP IC is a reliable half-duplex solution for RS-485 and RS-422 communication systems. It enables bidirectional data transfer over twisted-pair cables, making it ideal for multipoint networks with up to 32 devices. This transceiver supports a maximum data rate of 10 Mbps, ensuring efficient communication in various applications.

Featuring a combined driver and receiver in one package, the SN75176 Differential Bus Transceiver DIP IC operates effectively with TTL/CMOS compatible inputs and outputs. Its wide common-mode range of –7V to +12V enhances its versatility in industrial settings. Short-circuit and thermal protection further ensure the safety and reliability of your operations.

Commonly used in industrial automation, PLCs, and security systems, the SN75176 Differential Bus Transceiver DIP IC is essential for long-distance data transmission. Its robust design makes it suitable for metering and sensor networks, providing a dependable solution for various electronic applications.

Explore our selection of Communication IC's at DNA. The Nashik SN75176 is a key component for reliable RS-485 and RS-422 communication. Check other Communication IC's that we have in stock.

At DNA, we cater to Indian electronics buyers. If you're looking for specific electronic components like Capacitors, Analog ICs, Sensors, SMPS, Crystals, or Diodes, reach out to us. We can import items not in stock and support both retail and bulk orders. Contact Us

Features of SN75176 Differential Bus Transceiver DIP IC

• RS-485/RS-422 compliant
• Combined driver and receiver
• Half-duplex operation
• Up to 10 Mbps data rate
• Supports 32 transceivers
• Tri-state outputs
• Wide common-mode range: –7V to +12V
• Short-circuit protection

Specification of SN75176 Differential Bus Transceiver DIP IC

• Supply Voltage: 4.75V – 5.25V
• Max Data Rate: 10 Mbps
• Differential Output Voltage: ±1.5 V typical
• Receiver Input Sensitivity: ±200 mV
• Bus Load Capacity: 32 nodes
• Operating Temp Range: 0°C to +70°C

Applications of SN75176 Differential Bus Transceiver DIP IC

• Industrial automation
• PLCs
• Metering systems
• Sensor networks
• Security systems

Package Includes

• 1 X SN75176 Differential Bus Transceiver DIP IC
