STM32F407G-DISC Discovery kit

STM32F407G-DISC Discovery kit with STM32F407G MCU

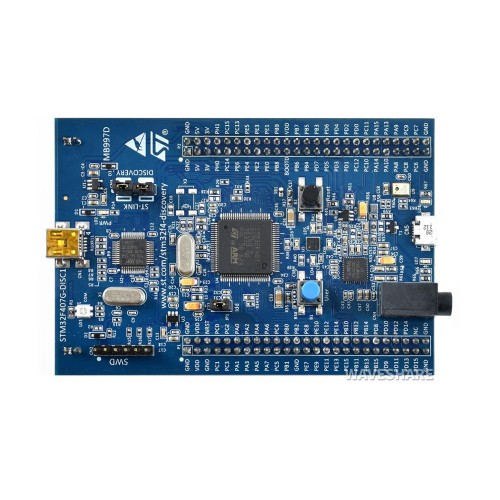

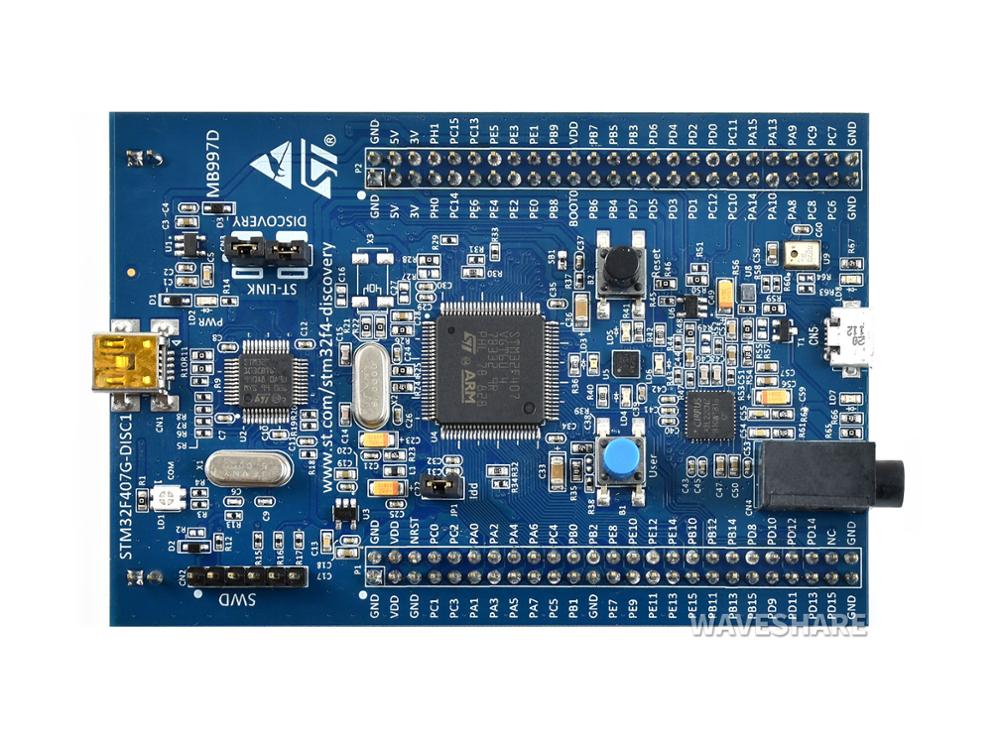

The STM32F4 Discovery kit leverages the capabilities of the STM32F407 high-performance microcontrollers, to allow users to develop audio applications easily. It includes an ST-LINK/V2-A embedded debug tool, one ST-MEMS digital accelerometer, one digital microphone, one audio DAC with integrated class D speaker driver, LEDs, push-buttons, and a USB OTG Micro-AB connector. STM32F4-Discovery kit photo Specialized add-on boards can be connected by means of the extension header connectors.

DNA solutions, Nashik has various types of Power Devlopment Board. Check out our complete collection of  Devlopment Board.

• STM32F407VGT6 microcontroller featuring 32-bit Arm® Cortex®-M4 with FPU core, 1-Mbyte Flash memory and 192-Kbyte RAM in an LQFP100 package


• USB OTG FS


• ST MEMS 3-axis accelerometer


• ST-MEMS audio sensor omni-directional digital microphone


• Audio DAC with integrated class D speaker driver


• User and reset push-buttons


• Eight LEDs:


• LD1 (red/green) for USB communication


• LD2 (red) for 3.3 V power on


• Four user LEDs, LD3 (orange), LD4 (green), LD5 (red) and LD6 (blue)


• Two USB OTG LEDs, LD7 (green) VBUS and LD8 (red) over-current


• Board connectors:


• USB with Micro-AB


• Stereo headphone output jack


• 2.54 mm pitch extension header for all LQFP100 I/Os for quick connection to prototyping board and easy probing


• Flexible power-supply options: ST-LINK, USB VBUS, or external sources


• External application power supply: 3 V and 5 V


• Comprehensive free software including a variety of examples, part of STM32CubeF4 MCU Package, or STSW-STM32068 for using legacy standard libraries


• On-board ST-LINK/V2-A debugger/programmer with USB re-enumeration capability: mass storage, Virtual COM port, and debug port


• Support of a wide choice of Integrated Development Environments (IDEs) including IAR Embedded Workbench®, MDK-ARM, and STM32CubeIDE


Package Includes

1 x STM32F407G-DISC Discovery kit
