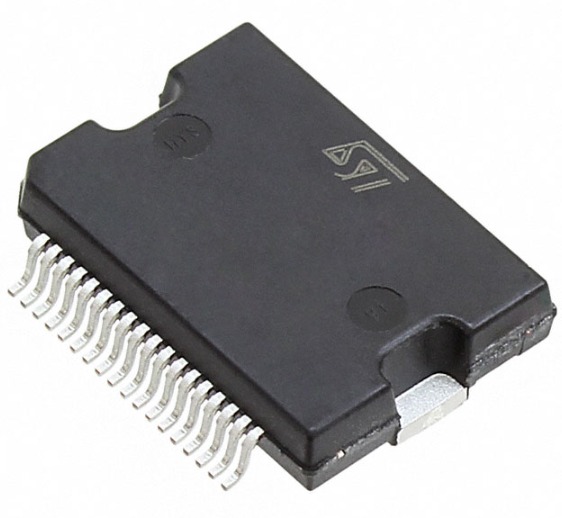

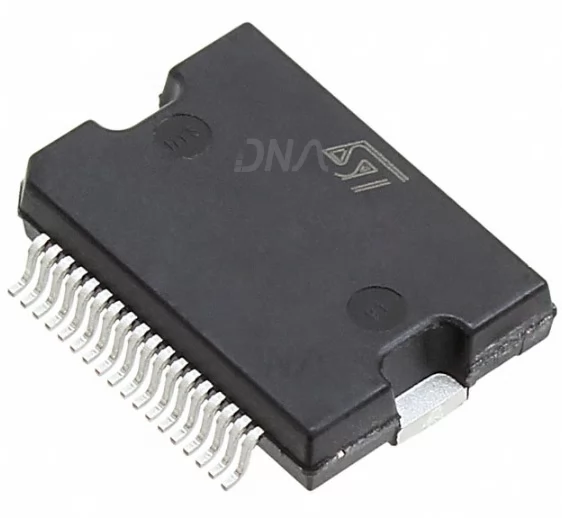

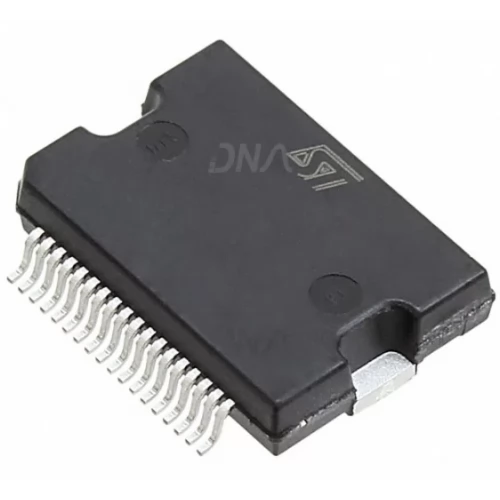

STMICROELECTRONICS ISO8200B Power Switch

STMICROELECTRONICS ISO8200B Power Switch

The ISO8200B is a galvanic isolated 8-channel driver featuring a very low supply current. It contains 2 independent galvanic isolated voltage domains (Vcc for the power stage and Vdd for the digital stage). Additional embedded functions are: loss of GND protection, under voltage shutdown with hysteresis, and reset function for immediate power output shutdown.

DNA solutions, Nashik has various types of Power Switch. Check out our complete collection of Power Switch.

• Parallel input interface

• Direct and synchronous control mode

• High common mode transient immunity

• Output current: 0.7 A per channel

• Short-circuit protection

• Channel overtemperature protection

Specifications of STMICROELECTRONICS ISO8200B Power Switch

• Number of Channels: 8 high-side outputs

• Output Current: 0.7 A per channel

• On-State Resistance (R_DS(on)): 0.12 Ω

• Input Voltage Range: 4.5 V to 6.5 V

• Control Input Logic Levels: Compatible with 5 V and 3.3 V TTL/CMOS

• Operating Temperature Range: -40°C to +125°C

• Package: PowerSO-36

Applications of STMICROELECTRONICS ISO8200B Power Switch

• Programmable logic control

• Industrial PC peripheral input/output

• Numerical control machines

• Drivers for all types of loads (resistive, capacitive, inductive)

Package Includes

      1 x STMICROELECTRONICS ISO8200B Power Switch
