  • TDA2003A Audio Amplifier

Product Images are shown for illustrative purposes only and may differ from actual product.

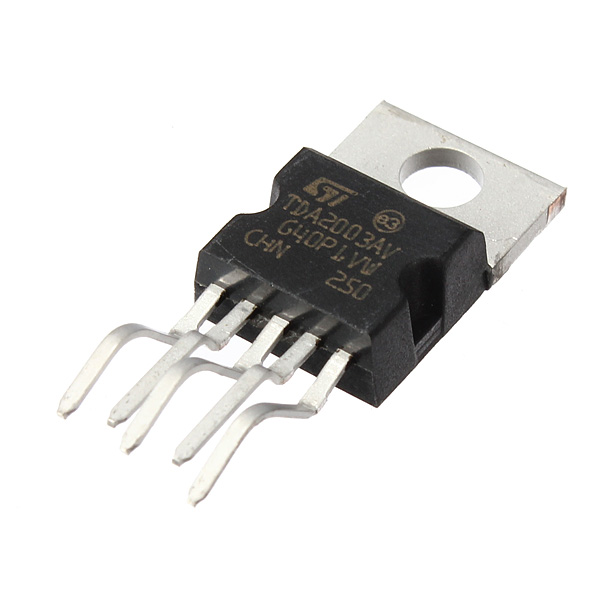

TDA2003A Audio Amplifier

  • Stock: Out Of Stock
  • SKU: 1221 | DAA485
  • Rs. 55.22 (inc GST)
    Rs.46.80 + GST

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location.

TDA2003A Audio Amplifier

The TDA 2003A has improved performance with the same pin configuration as the TDA 2002.

The additional features of TDA 2002, very low number of external components, ease of assembly, space and cost saving, are maintained. The device provides a high output current capability (up to 3.5A) very low harmonic and cross-over distortion. Completely safe operation is guaranteed due to protection against DC and AC short circuit between all pins and ground, thermal over-range, load dump voltage surge up to 40V and fortuitous open ground.

NOTE : This is TDA2003A IC. If you require TDA2003 click here.

Features of TDA2003A

  • VS Peak supply voltage (50ms) 40 V

  • VS DC supply voltage 28 V

  • VS Operating supply voltage 18 V

  • IO Output peak current (repetitive) 3.5 A

  • IO Output peak current (non repetitive) 4.5 A

  • Ptot Power dissipation at Tcase = 90°C 20 W

  • Tstg, TStorage and junction temeperature -40 to 150 °C

Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
