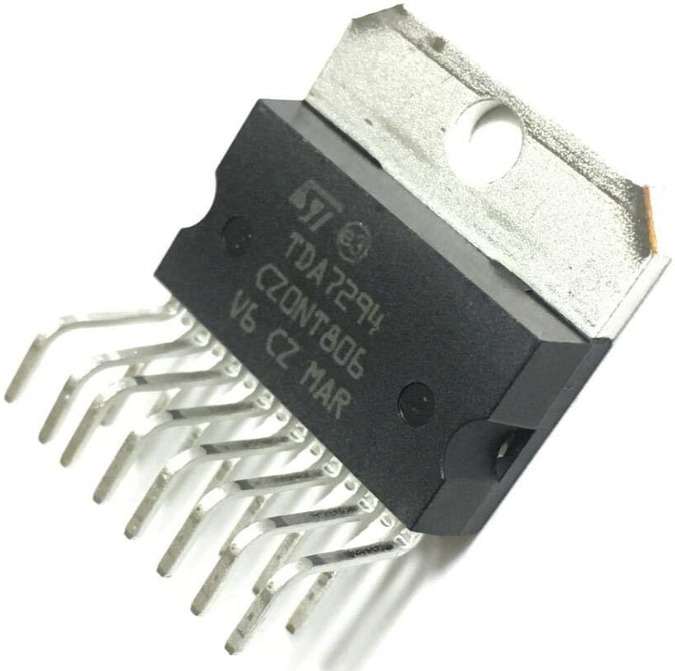

TDA7294 AUDIO AMPLIFIER IC

TDA7294 AUDIO AMPLIFIER IC

The TDA7294 is a high-power, high-fidelity audio amplifier integrated circuit (IC) manufactured by STMicroelectronics. Designed using the MOSFET-based Class AB amplification architecture, it provides excellent audio quality with low distortion and high output power. It operates with a single or dual power supply and is equipped with thermal protection, short-circuit protection, and muting functionality.

DNA solutions, Nashik has various types of Amplifier IC's. Check out our complete collection of Amplifier IC's.

• High Output Power: Up to 100W of RMS power with a suitable power supply and speaker load

• Low Harmonic Distortion: Provides clean and distortion-free audio, making it ideal for high-fidelity audio systems

• Wide Operating Voltage Range: Supports ±10V to ±40V dual supplies or 20V to 80V single supply

• MOSFET Technology: Uses MOSFET transistors for improved performance and efficiency

Specifications of TDA7294 AUDIO AMPLIFIER IC

• Operating Voltage: ±10V to ±40V (dual supply)

• Output Power: Up to 100W (RMS @ ±35V, 4Ω load)

• Total Harmonic Distortion (THD): < 0.1% (@1kHz, full output power)

• Quiescent Current: 30mA (typical)

• Input Sensitivity: 1V RMS

• Input Impedance: 22kΩ

• Bandwidth: 20Hz to 20kHz

Applications of TDA7294 AUDIO AMPLIFIER IC

• Home Audio Systems

• Car Audio

• Professional Sound Equipment

• Musical Instrument Amplifiers

• DIY Audio Projects

Package Includes

      1 x TDA7294 AUDIO AMPLIFIER IC
