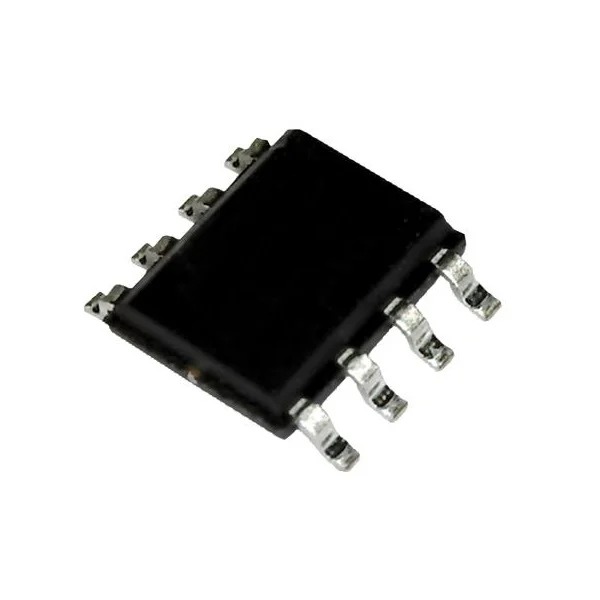

TJA1050T/CM High Speed CAN Transceiver IC

TJA1050 High Speed CAN BUS Transceiver IC

TJA1050T High Speed CAN Transceiver IC for automotive applications with high speed, low EMI, and EME specifications.

The TJA1050 High Speed CAN BUS Transceiver IC serves as a vital interface between the CAN protocol controller and the physical bus. This IC is designed for high-speed automotive applications, supporting baud rates from 60 kbaud to 1 Mbaud. It ensures reliable communication with features like differential transmit and receive capabilities, making it ideal for robust vehicle networks. The TJA1050 High Speed CAN BUS Transceiver IC complies with the ISO 11898 standard, ensuring seamless integration with existing systems.

In addition to its speed, the TJA1050 High Speed CAN BUS Transceiver IC provides excellent electromagnetic immunity, with low electromagnetic emissions, making it suitable for sensitive automotive environments. Its design allows for up to 110 nodes to be connected, providing flexibility in network design. With thermal protection and short-circuit proof features, this IC ensures durability and reliability in automotive applications.

For those seeking a dependable solution in communication ICs, the TJA1050 High Speed CAN BUS Transceiver IC is a top choice. Its compatibility with both 3.3V and 5V devices broadens its usability in various electronic designs. Explore the capabilities of this transceiver to enhance your automotive communication systems.

Explore the cutting-edge technology from DNA, the leading retailer in Communication IC's. Check other Communication IC's that we have in stock.

At DNA, we cater to all your electronic component needs. If you can't find specific parts, we can import them for you. We support retail and bulk orders. Consider checking out related items like Nextion Displays, LCDs, Connectors, Development Modules, and Microcontrollers. Contact Us.

Features of TJA1050 High Speed CAN BUS Transceiver IC

• Fully compatible with ISO 11898 standard
• High speed up to 1 Mbaud
• Very low ElectroMagnetic Emission (EME)
• Differential receiver for high EMI immunity
• Unpowered node does not disturb bus lines
• Transmit Data (TXD) dominant time-out function
• Silent mode disables transmitter
• Bus pins protected against transients
• Input levels compatible with 3.3V and 5V devices
• Thermally protected
• Short-circuit proof to battery and ground
• Supports up to 110 nodes.

Specification of TJA1050 High Speed CAN BUS Transceiver IC

• Baud Rate: 60 kbaud to 1 Mbaud
• Supply Voltage: 3.3V and 5V compatible
• Node Count: Up to 110 nodes
• EME: Low
• EMI: High immunity
• Protection: Thermal and short-circuit.

Applications of TJA1050 High Speed CAN BUS Transceiver IC

• Automotive communication networks
• Industrial automation systems
• Robotics control systems
• Smart vehicle applications.

Related Links for TJA1050 High Speed CAN BUS Transceiver IC

• Other Products from Communication IC's Category

Package Includes

• 1 X TJA1050T/CM High Speed CAN Transceiver IC
