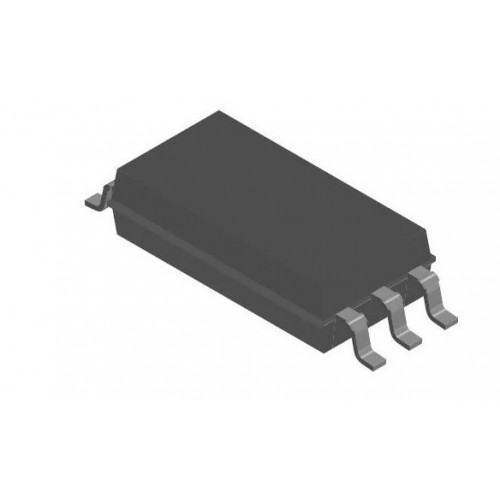

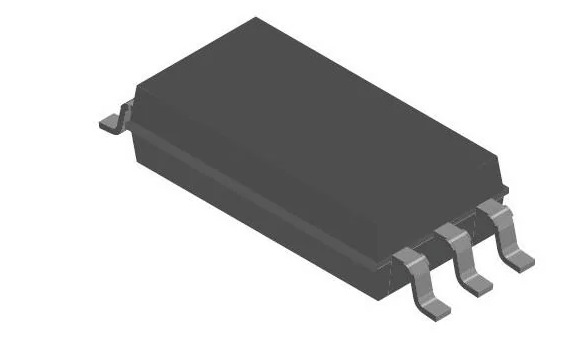

TLP5701 SOIC 6 Logic Output Opto couplers Photocoupler, Photo IC

  • Stock: Out Of Stock

    Availability: NotInStock priceValidUntil: 2026-12-17

  • SKU: 7803 | DAH522

Availability: NotInStock priceValidUntil: 2026-12-17

  • Rs. 372.29 (inc GST)
    Rs.315.50 + GST
    Qty :

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

TLP5701 SOIC 6 Logic Output Opto Coupler IC

TLP5701 Opto Coupler with 5 kVrms isolation, compact 6-pin package and wide temperature range of -40°C to +110°C.

The TLP5701 SOIC 6 Logic Output Opto Coupler IC is a high-performance device that ensures reliable signal isolation in demanding applications. With an isolation voltage of 5 kVrms, this optocoupler is perfect for use in environments where electrical isolation is crucial, such as industrial automation and medical equipment. The compact 6-pin SMD package makes it suitable for space-constrained designs, while its wide operating temperature range of -40°C to +110°C ensures performance in various conditions.
The TLP5701 features integrated gate drive functionality for IGBTs and MOSFETs, making it ideal for applications like switching power supplies and solar inverters. With a typical propagation delay of just 150ns, it provides fast and efficient signal transmission. This opto coupler is an excellent choice for engineers looking to enhance their circuit designs with reliable isolation and performance.
Explore the capabilities of the TLP5701 SOIC 6 Logic Output Opto Coupler for your next project. Its robust specifications and versatility make it a valuable component for various electronic applications, providing peace of mind in signal integrity and isolation.
At DNA, we offer a wide range of OptoCouplers & OptoIsolators from trusted brands like Toshiba. Discover how these components can improve your circuit designs. Check other OptoCouplers & OptoIsolators that we have in stock.
If you're searching for specific electronic components, DNA can help. We support retail and bulk orders, including hard-to-find parts. Check out our selection of Digital ICs, Development Modules, Capacitors, Inductors, and more. Contact Us.

Features of TLP5701 SOIC 6 Logic Output Opto Coupler IC

  • High Isolation Voltage: 5 kVrms
  • Compact SMD Package: 6-pin
  • Wide Operating Temperature Range: -40°C to +110°C
  • Integrated Gate Drive Functionality for IGBTs and MOSFETs
  • Fast Propagation Delay: Typical 150ns

Specification of TLP5701 SOIC 6 Logic Output Opto Coupler IC

  • Isolation Voltage (VISO): 5000 Vrms
  • Supply Voltage (VCC): 15V to 30V
  • Operating Temperature: -40°C to +110°C
  • Propagation Delay: Typical 150ns
  • Output Current: Up to ±2.5A
  • Package Type: 6-pin SMD

Applications of TLP5701 SOIC 6 Logic Output Opto Coupler IC

  • Gate Drive for Power Devices
  • Switching Power Supplies
  • Industrial Automation
  • Solar Inverters
  • Medical Equipment
