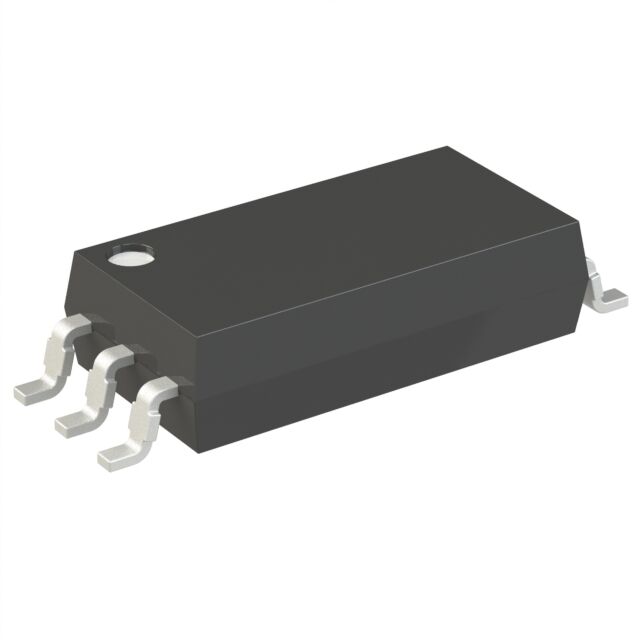

TLP5772 Logic Output Optoisolator SMD IC

TLP5772 Logic Output Optoisolator SMD IC

The TLP5772 is a high-speed logic output optoisolator designed for digital signal isolation between low-voltage control circuits and high-voltage systems. It integrates a high-efficiency infrared LED and a photodetector IC to provide high-speed switching up to 10 Mbps. The device supports logic level output compatible with 3.3V and 5V systems, making it suitable for interfacing with MCUs, FPGAs, or PLCs. It offers 2500 Vrms isolation voltage, low power consumption, and stable output with excellent noise immunity. Available in a 5-pin SO6 surface-mount package, it's ideal for compact industrial and communication systems.

DNA solutions, Nashik has various types of Optoisolator IC's. Check out our complete collection of Optoisolator IC's.

• High-speed switching: up to 10 Mbps

• Logic output compatible with 2.7V to 5.5V logic levels

• Low supply current: 1 mA

• Isolation voltage: 2500 Vrm

• Low pulse width distortion and propagation delay

Specifications of TLP5772 Logic Output Optoisolator SMD IC

• Supply Voltage: 2.7V to 5.5V

• Data Rate: Up to 10 Mbps

• Isolation Voltage: 2500 Vrms

• CMR: ±20 kV/µs

• Output Type: CMOS Logic

Applications of TLP5772 Logic Output Optoisolator SMD IC

• Industrial signal isolation

• Switching power supplies

• PLC systems

• Servo motor control

Package Includes

      1 x TLP5772 Logic Output Optoisolator SMD IC
