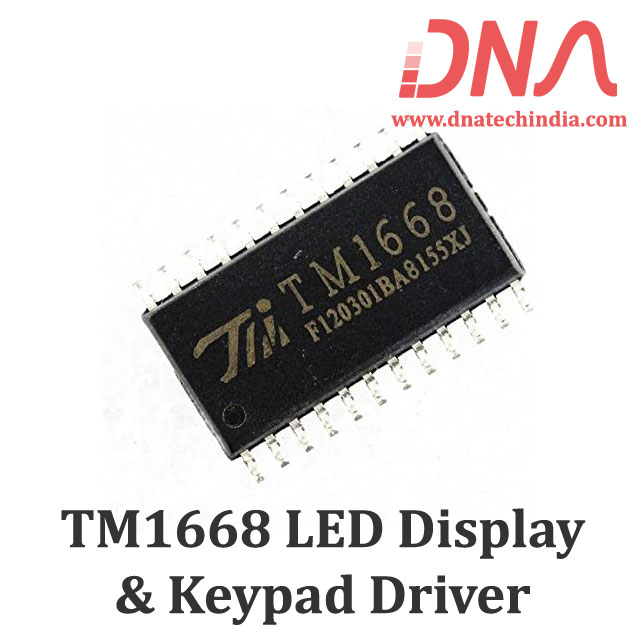

TM1668 LED Display Driver & Keypad IC (SOP24 Package)

Write a review | 0 reviews

Stock: 40

SKU: 2799 | DAE397

Rs. 27.14 (inc GST)
Rs.23.00 + GST

Qty :
Qty

Electronic Component of the Week (ELCOW) Raspberry Pi 3B+ In Stock

GST Invoice on all Purchase. So you will be eligible to take input tax credit.
IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.
Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location.

Description

TM1668/HT1668 LED Driver IC

TM1668 HT1668 LED Seven Segment Display driver & Keypad IC used in Induction cooker display

HT1668 is an LED Controller driven on a 1/7 to 1/8 duty factor. Eleven segment output lines, six grid output lines, 1 segment grid output lines, one display memory, control circuit , key scan circuit are all incorporated into a single chip to build a highly reliable peripheral device for a single chip microcomputer. Serial data is fed to HT1668 via a four-line serial interface.

Housed in a 24-pin SO Package, HT1668 pin assignments and application circuit are optimized for easy PCB Layout and cost saving advantages. The TM1668/HT1668 is widely used in Induction cooker displays.

If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

FEATURES of TM1668 LED Display Driver & Keypad IC

CMOS Technology
Low Power Consumption
Multiple Display Modes
Key Scanning
8-Step Dimming Circuitry
Serial Interface for Clock, Data Input, Data Output, Strobe Pins
Available in 24-Pin, SOP Package

Related Details

HT1668/TM1668 LED Driver IC Datasheet

Extra Information
Country of Origin	China
Imported By	ElectroSource Private Limited
