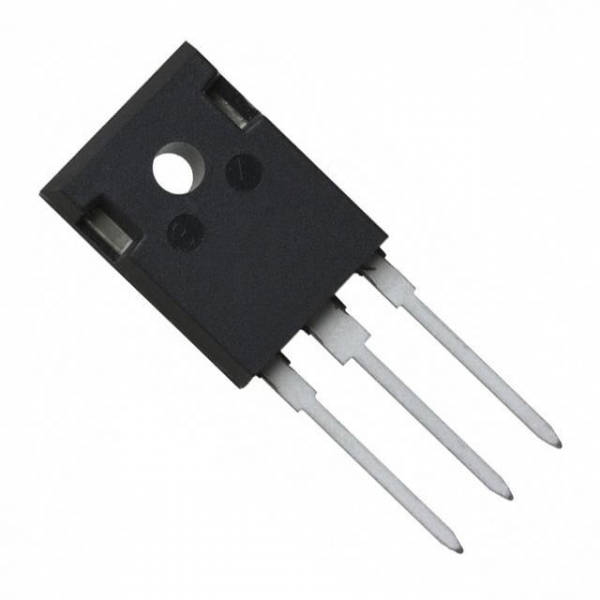

U30D60C Ultra Fast Recovery Rectifier

U30D60C Ultra Fast Recovery Rectifier

U30D60C is a 30A dual common cathode rectifier for SMPS with low forward voltage and high efficiency.

The U30D60C Ultra Fast Recovery Rectifier is designed for high-performance applications in SMPS and as a free wheeling diode. It features a dual rectifier construction that ensures reliability. The plastic package complies with Underwriters Laboratory Flammability Classification 94V0, making it suitable for various environments. With a superfast recovery time and low forward voltage, it offers high current capability and low thermal resistance.

The U30D60C ensures minimal power loss, enhancing efficiency in electronic circuits. Its glass passivated chip junctions improve durability under high-stress conditions. This rectifier can handle high temperatures, ensuring robust performance without compromising quality. It is ideal for applications requiring reliable power management and efficiency.

Engineered for versatility, the U30D60C Ultra Fast Recovery Rectifier can be mounted in any position, making it adaptable to various designs. Its compact size and light weight facilitate easy integration into electronic systems, ensuring optimal performance in demanding applications.

Explore the reliability of Diodes & Transistors with DNA. Discover the U30D60C Ultra Fast Recovery Rectifier and enhance your electronic projects. Check other "Diodes & Transistors" that we have in stock.

If you are searching for specific electronic components, **_DNA_** is here to help. We can import hard-to-find parts and support your needs in retail and bulk. Explore related items like SMPS, Programmer, Inductor, Sensor Module, Crystal, and Nextion Display. Contact Us.

Features of U30D60C Ultra Fast Recovery Rectifier

• Dual rectifier construction
• Glass passivated chip junctions
• Low forward voltage
• High current capability
• Superfast recovery time
• Low thermal resistance
• High efficiency

Specification of U30D60C Ultra Fast Recovery Rectifier

• Current rating: 30A
• Package type: TO-3P/TO-247A
• Flammability rating: 94V0
• Mounting torque: 10in-lbs max
• Weight: 0.2 ounce (5.6 gram)

Applications of U30D60C Ultra Fast Recovery Rectifier

• Switching power supplies
• Free wheeling diodes
• High-efficiency power management
• Electronic circuit protection
• High-temperature applications

Package Includes

• 1 X U30D60C Ultra Fast Recovery Rectifier
