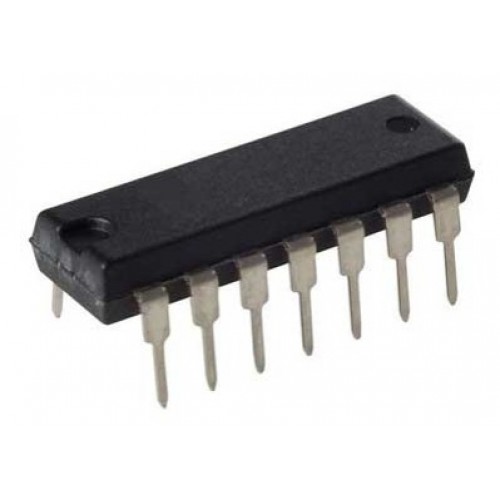

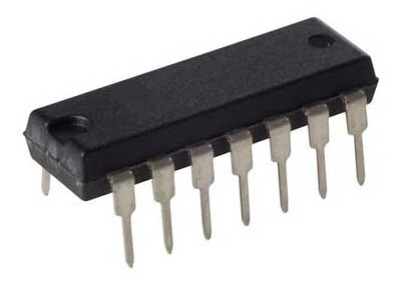

UA747PC Dual General Purpose Operational Amplifier IC

  • Stock: 10

    Availability: InStock priceValidUntil: 2026-12-15

  • SKU: 7481 | DAD197

Availability: InStock priceValidUntil: 2026-12-15

  • Rs. 200.60 (inc GST)
    Rs.170.00 + GST
    Qty :

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

UA747PC Dual General Purpose Operational Amplifier IC

UA747PC Dual Op-Amp IC with offset null capability, low power consumption, and wide common-mode range.

The UA747PC Dual General Purpose Operational Amplifier IC is designed for analog signal processing. It features offset-voltage null capability and operates within a wide voltage range, making it suitable for various applications. With short-circuit protection and no requirement for external frequency compensation, this amplifier ensures reliability and stability. The UA747PC is ideal for voltage-follower applications and offers low power consumption and high performance.
Engineered to be interchangeable with similar models, the UA747PC Dual General Purpose Operational Amplifier IC supports a gain bandwidth product of 1 MHz and a typical input offset voltage of just 5mV. This makes it a top choice for engineers and hobbyists alike. Whether you are working on audio applications or signal conditioning, the UA747PC delivers consistent results.
Buy the UA747PC Dual General Purpose Operational Amplifier IC today and enhance your projects with a reliable component. Ideal for both DIY projects and professional applications, this op-amp is a staple in electronic design.
Explore the best in Instrumentation Amplifiers at DNA. The UA747PC from an esteemed manufacturer guarantees quality and precision. Discover more options in our Instrumentation Amplifiers category. Check other Instrumentation Amplifiers that we have in stock.
At DNA, we cater to all your electronic component needs. If you're looking for specific parts, reach out to us. We can import items and support both retail and bulk orders. Check out related components like Power Supply, Hongfa Relay, Development Module, HMI Display, Inductor, and Humidity & Temperature Sensor. Contact Us

Features of UA747PC Dual General Purpose Operational Amplifier IC

  • No Frequency Compensation Required
  • Low Power Consumption
  • Short-Circuit Protection
  • Offset-Voltage Null Capability
  • Wide Common-Mode and Differential Voltage Ranges
  • No Latch-Up

Specification of UA747PC Dual General Purpose Operational Amplifier IC

  • Operating Voltage: ±3V to ±22V
  • Input Offset Voltage: 5mV (typical)
  • Input Bias Current: 80nA (typical)
  • Output Voltage Swing: ±14V (for ±15V supply)
  • Slew Rate: 0.5V/µs
  • Gain Bandwidth Product: 1 MHz
  • Operating Temperature Range: 0°C to +70°C

Applications of UA747PC Dual General Purpose Operational Amplifier IC

  • Analog Signal Processing
  • Voltage-Follower Applications
  • Signal Conditioning
  • Audio Systems
  • Instrumentation

Package Includes

  • 1 X UA747PC Dual General Purpose Operational Amplifier IC
Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
