74HC574 DIP IC

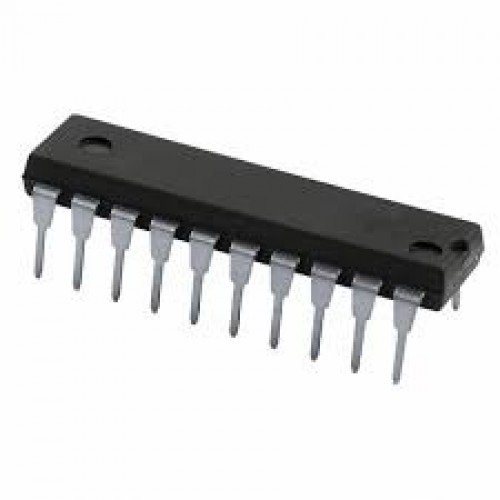

74HC574 Tri State Octal D-Type Flip-Flop IC (74574 IC) DIP-20 Package

The 74HC574 high speed octal D-type flip-flops utilize advanced silicon-gate P-well CMOS technology. They possess the high noise immunity and low power consumption of standard CMOS integrated circuits, as well as the ability to drive 15 LS-TTL loads. Due to the large output drive capability and the 3-STATE feature, these devices are ideally suited for interfacing with bus lines in a bus organized system. These devices are positive edge triggered flip-flops. Data at the D inputs, meeting the set-up and hold time requirements, are transferred to the Q outputs on positive going transitions of the CLOCK (CK) input. When a high logic level is applied to the OUTPUT CONTROL (OC) input, all outputs go to a high impedance state, regardless of what signals are present at the other inputs and the state of the storage elements. The 74HC logic family is speed, function, and pinout compatible with the standard 74LS logic family. All inputs are protected from damage due to static discharge by internal diode clamps to VCC and ground.

DNA solutions, Nashik has various types of IC Components & IC's. Check out our complete collection of  7400 Series IC's

• Compatible with bus-oriented systems

• Typical propagation delay: 18 ns

• Wide operating voltage range: 2V–6V

• Low input current: 1 µA maximum

• Low quiescent current: 80 µA maximum

• Output drive capability: 15 LS-TTL loads

Specifications

• Supply Voltage (VCC : − 0.5 to + 7.0V

• Storage Temperature Range (TSTG) : -65°C to + 150°C

• Input Voltage (VIN) : −1.5V to VCC + 1.5V

• Output Voltage (VOUT) :  -0.5 to VCC + 0.5V

• Clamp Diode Current (IIK, IOK) : ± 20 mA

• DC Output Current, per pin (IOUT) : ± 35 mA

• DC VCC or GND Current, per pin (ICC) : ± 70 mA

• Power Dissipation (PD) (Note 4) : 600 mW

• S.O. Package only : 500 mW

• Lead Temperature (TL) (Soldering 10 seconds) : 260°C

Package Includes

1 x 74HC574 DIP IC
