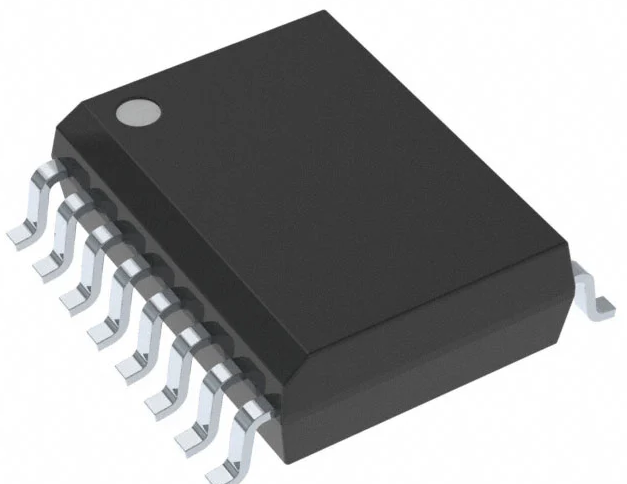

UC2825DW PWM Control IC for Power Supply

UC2825DW PWM Control IC for Power Supply

UC2825DW PWM control IC optimized for high frequency power supply applications with current limit and under-voltage lockout features.

The UC2825DW PWM Control IC for Power Supply is a reliable solution for high frequency switched mode applications. It minimizes propagation delays and maximizes bandwidth, making it ideal for both current-mode and voltage-mode systems. This IC features a current limit comparator, TTL compatible shutdown port, and soft start pin for enhanced protection. The UC2825DW also includes a high impedance output during under-voltage lockout, ensuring safe operation.

Engineered for efficiency, the UC2825DW offers totem pole outputs that can handle high peak currents, which is essential for driving power MOSFETs. Its design supports input voltage feed-forward, providing flexibility in various applications. Whether for industrial or consumer electronics, the UC2825DW PWM Control IC stands out in performance and reliability.

This IC is perfect for applications requiring precise control in power supply circuits. If you seek a robust solution for your electronic projects, consider the UC2825DW for its advanced features and dependable operation.

Explore the innovative range of "AC DC converter Offline Switcher" products from DNA. The UC2825DW PWM Control IC enhances your power supply designs. Check other "AC DC converter Offline Switcher" that we have in stock.

At DNA, we cater to Indian electronics buyers with a wide array of components. If you cannot find specific parts, we can import them for you. We support retail and bulk orders. Explore related items like Inductor, Super Capacitor, Nextion Display, Capacitor, Digital IC, and Transistor. Contact Us.

Features of UC2825DW PWM Control IC for Power Supply

• Optimized for high frequency applications
• Current limit comparator
• TTL compatible shutdown port
• Soft start pin
• High impedance during under-voltage lockout

Specification of UC2825DW PWM Control IC for Power Supply

• Propagation delay minimized
• High bandwidth
• Capable of handling high peak currents
• Input voltage feed-forward
• Under-voltage lockout with 800mV hysteresis

Applications of UC2825DW PWM Control IC for Power Supply

• Power supply circuits
• Voltage mode systems
• Current mode systems
• Consumer electronics
• Industrial applications

Related Links for UC2825DW PWM Control IC for Power Supply

• Other Products from AC DC converter Offline Switcher Category

Package Includes

• 1 X UC2825DW PWM Control IC for Power Supply
