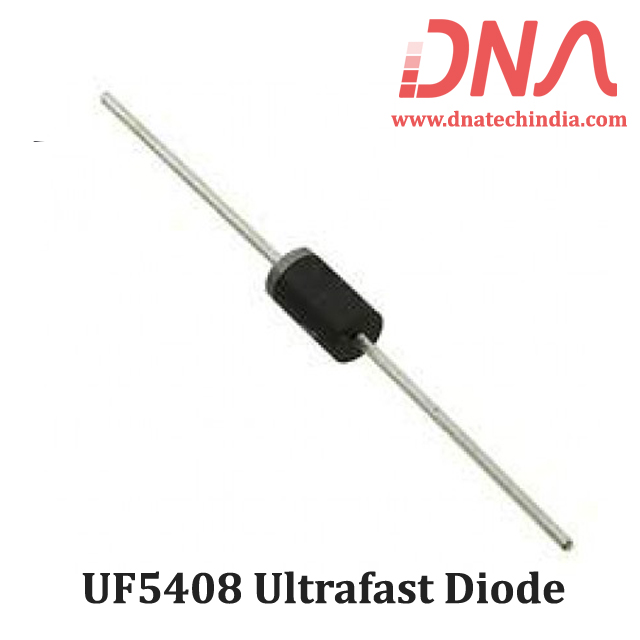

UF5408 Ultrafast Diode


Write a review | 3 reviews

  • Stock: Out Of Stock

    Availability: NotInStock priceValidUntil: 2026-08-15

  • SKU: 686 | DAA365

Availability: NotInStock priceValidUntil: 2026-08-15

  • Rs. 5.90 (inc GST)
    Rs.5.00 + GST

    Qty :

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

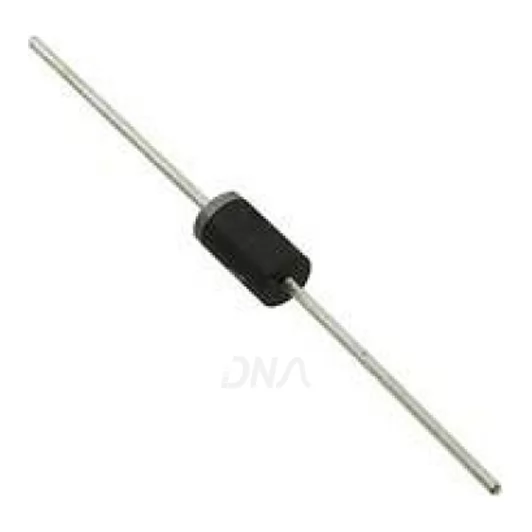

UF5408 Ultra-fast Diode

The UF5408 is a soft recovery ultra-fast plastic Rectifier.

We have Various sizes of Diode. Check out our complete collection of Diode.


If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features of UF5408 Ultra-fast Diode

  • Low forward voltage Drop

  • High current capability

  • High Reliability

  • High surge capability

  • Low cost

  • Maximum Recurrent Peak Reverse Voltage 1000V

  • Maximum RMS Voltage 700V

  • Maximum DC Blocking Voltage to T =150A 0C 1000V

  • Maximum Average Forward Rectified Current 3.0Amp

  • Peak Forward Surge Current 8.3 ms single half sine-wave 150Amp

  • Maximum Forward Voltage at 3.0A Peak 1.7V

  • Storage Temperature Range TA -65 to +125 oC

  • Operating Temperature Range TJ -65 to +150 oC

Mechanical Features of UF5408 Ultra-fast Diode

  • Case : DO-201AD, Molded Plastic

  • Terminals: plated axial leads, solderable per MIL-STD-202,

  • method 208

  • Polarity : color band denotes cathode end

  • Mounting position : any

  • Weight : approx. 1.2g

Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
