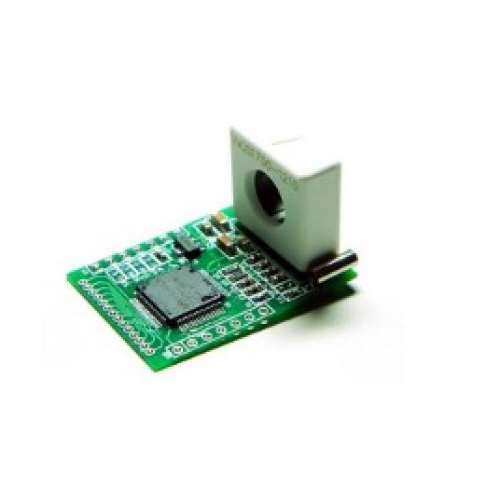

WCM1800-AC50C-WCM1800 17A AC Current Sensor Module With Digital Data Output

Write a review | 1 reviews

Stock: Out Of Stock
Availability: NotInStock priceValidUntil: 2026-03-08
Brand: Winsen
SKU: 8891 | DAI099

Rs. 1,239.00 (inc GST)
Rs.1,050.00 + GST

Qty :
Qty Qty

GST Invoice: Available for all purchases — eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need more quantity or not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

Description

WCM1800-AC50C-WCM1800 17A AC Current Sensor Module With Digital Data Output

WCM1800-AC50C-WCM1800 17A AC Current Sensor Module With Digital Data Output

The Winson WCM1800 provides economical and precise solution for both AC and DC current sensing in industrial, commercial and communications systems. The WCM1800 consists of a current sensor, temperature sensor, a very high accuracy A/D converter and digital signal output of current. The WCM1800 includes a current sensor with a diameter 9mm hole, users can just use system’s own electric wire by pass it through this hole to measure passing current without breaking original system, user’s MCU can get the real data from DATA pin. The WCM1800 provides temperature calibration of the internal current sensor and accurately measures the current of AC 50 / 60Hz and DC at temperature from -20C~70C. The WCM1800 also offers solutions for true RMS current measurement of various loads.

DNA solutions, Nashik has various types of Module's. Check out our complete collection of Module's.

If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features of WCM1800-AC50C-WCM1800 17A AC Current Sensor Module With Digital Data Output

Continuous output and Modbus-RTU version
Operating voltage DC5.0V
Diameter 9.0mm conductor through hole
Sensing current range : AC : 0~17A (50Hz, 60Hz)
High accuracy : AC : (0~5A) +- 0.05A, (5~17A) +- 1%
High resolution : AC / DC : 18mA
UART, Baud Rare : 9600 bps, Parity bit : None, Data bit : 8,Stop bit : 1
Temperature calibration
Isolation voltage : 4KV

Specifications of WCM1800-AC50C-WCM1800 17A AC Current Sensor Module With Digital Data Output

Model: WCM1800-AC50C
Rated Current: 17A AC (RMS)
Operating Voltage: 3.3V or 5V
Current Measurement Range: 0 – 17A AC
Output Type: Digital
Operating Temperature: -40°C to +85°CResponse Time: < 100ms
Mounting Type: PCB Mount
Form Factor: Compact, easy to integrate into embedded systems

Applications of WCM1800-AC50C-WCM1800 17A AC Current Sensor Module With Digital Data Output

Smart Energy Meters
Home Appliance Power Monitoring
Industrial Equipment Monitoring
AC Motor Control Systems
IoT-based Energy Management
Smart Power Strips

Package Includes

1 x WCM1800-AC50C-WCM1800 17A AC Current Sensor Module With Digital Data Output

Extra Information
Country of Origin	China
Imported By	ElectroSource Private Limited
