Product Images are shown for illustrative purposes only and may differ from actual product.

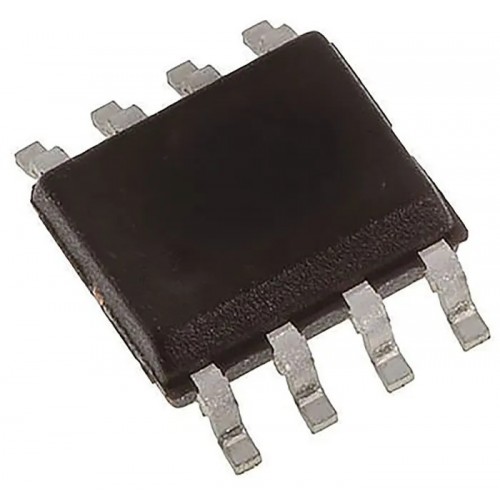

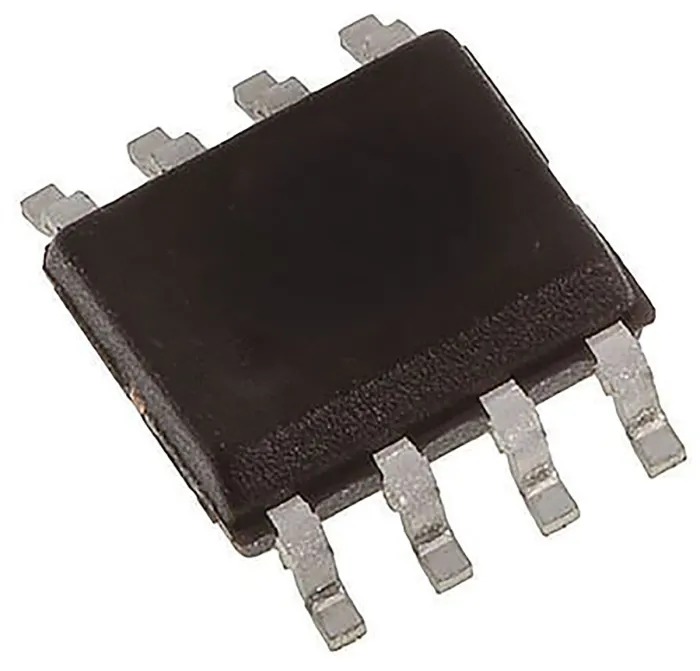

WS2811 LED DRIVER CHIP, 8 PIN IC
- Stock: 150
- SKU: 7369 | DAF942
-
Rs. 7.08 (inc GST)
Rs.6.00 + GSTQty :
GST Invoice: Available for all purchases — eligible for input tax credit.
Delivery: 2–8 days across India. No MOQ required.
Bulk Orders: Need more quantity or not in stock? Email: dnatechindia [at] gmail.com
Import Service: We import a wide range of electronic components on request.
WS2811 LED DRIVER CHIP, 8 PIN IC
WS2811 LED DRIVER CHIP, 8 PINS IC
The WS2811 is 3 output channels special for LED driver circuit. It internal include intelligent digital port data latch and signal reshaping amplification drive circuit. Also include a precision internal oscillator and a 12V voltage programmable constant current output drive. In the purpose of reduce power supply ripple, the 3 output channels designed to delay turn-on function. IC use single NZR communication mode. After the chip power-on reset, the DIN port receive data from controller, the first IC collect initial 24 bit data then sent to the internal data latch, the other data which reshaping by the internal signal reshaping amplification circuit sent to the next cascade IC through the DO port.
DNA solutions, Nashik has various types of IC's. Check out our complete collection of IC's.
If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India. |
Features of WS2811 LED DRIVER CHIP, 8 PIN IC
- Output port compression 12V.
- Built in stabilivolt, Only add a resistance to IC VDD feet when under 24V power supply.
- Gray level 256 can be adjusted and scan frequency not less than 400Hz/s.
- Built in signal reshaping circuit, after wave reshaping to the next driver, ensure wave-form distortion not accumulate.
- Built-in electric reset circuit and power lost reset circuit.
- Cascading port transmission signal by single line.
- Any two point the distance more than 10m transmission signal without any increase circuit.
Specifications of WS2811 LED DRIVER CHIP, 8 PIN IC
- Supply Voltage (V<sub>DD</sub>): 3.5V to 5.3V (typical 5V)
- Output Voltage (V<sub>OUT</sub>): 12V (typical)
- Constant Output Current: 18.5 mA per channel (typical)
- Operating Current: 1 mA (typical)
- Maximum Data Transfer Rate: 800 kbps
- PWM Control: 256 levels (8-bit grayscale control)
Package Includes
- 1 x WS2811 LED DRIVER CHIP, 8 PIN IC
