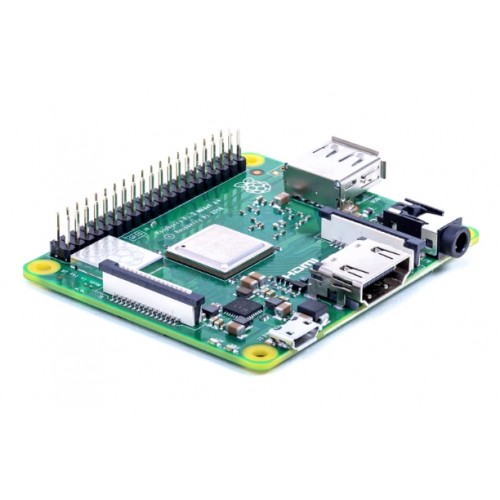

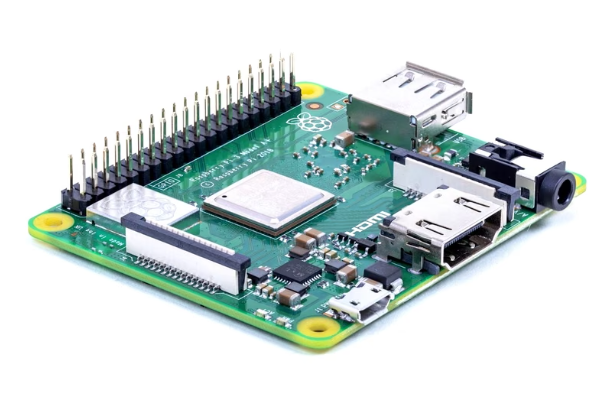

Raspberry Pi RPI3-MODAP 3 Model A+ Wireless Computing Board

  • Stock: 5

    Availability: InStock priceValidUntil: 2026-12-17

  • Brand: Raspberry Pi
  • SKU: 11227 | DAF380

Availability: InStock priceValidUntil: 2026-12-17

  • Rs. 4,499.99 (inc GST)
    Rs.3,813.56 + GST
    Qty :

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

Raspberry Pi RPI3-MODAP 3 Model A+ Wireless Computing Board

RPI3-MODAP computing board with a 1.4 GHz quad-core processor, dual-band wireless LAN, Bluetooth 4.2/BLE and 512 MB memory.

The Raspberry Pi RPI3-MODAP 3 Model A+ is a computing board with a 64-bit quad-core processor running at 1.4 GHz and 512 MB of memory. It combines computing with dual-band wireless connectivity and Bluetooth 4.2/BLE in a compact board format.
Its 40-pin GPIO header supports connections to external circuits, while USB 2.0, HDMI, display and camera ports provide options for peripherals and media. Micro SD storage supports operating system loading and data storage. The board also supports H.264 video encoding and decoding at 1080p30. These integrated functions make it a flexible computing platform for designs that need wireless links, hardware connections and media interfaces on one board.
DNA supplies Raspberry Pi products for electronics projects and system builds. Explore the Raspberry Pi range to find boards and related components for your next design. Check other Raspberry Pi that we have in stock
Buying electronics in India? Contact DNA if you cannot find the part you need. We offer import support and retail or bulk purchasing support, with related Development Module, LCD and converter options. Contact Us

Features of Raspberry Pi RPI3-MODAP 3 Model A+ Wireless Computing Board

  • Combines computing with wireless LAN and Bluetooth connectivity
  • GPIO header supports connections to external circuits
  • Includes HDMI, display and camera interfaces
  • USB port supports peripheral connections
  • Supports hardware video encoding and decoding
  • Micro SD storage supports operating system loading and data storage

Specifications of Raspberry Pi RPI3-MODAP 3 Model A+ Wireless Computing Board

  • Processor: Broadcom BCM2837B0, 64-bit quad-core Cortex-A53 SoC at 1.4 GHz
  • Memory: 512 MB LPDDR2 SDRAM
  • Wireless LAN: 2.4 GHz and 5 GHz IEEE 802.11 b/g/n/ac
  • Bluetooth: Bluetooth 4.2/BLE
  • USB: 1 × USB 2.0 port
  • GPIO: Extended 40-pin GPIO header
  • Video and audio interfaces: Full-size HDMI, MIPI DSI display port, MIPI CSI camera port, 4-pole stereo output and composite video port
  • Input power: 5 V/2.5 A DC via micro USB connector or 5 V DC via GPIO header

Related Links for Raspberry Pi RPI3-MODAP 3 Model A+ Wireless Computing Board

Package Includes

  • 1 X Raspberry Pi RPI3-MODAP 3 Model A+ Wireless Computing Board
Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
