Product Images are shown for illustrative purposes only and may differ from actual product.

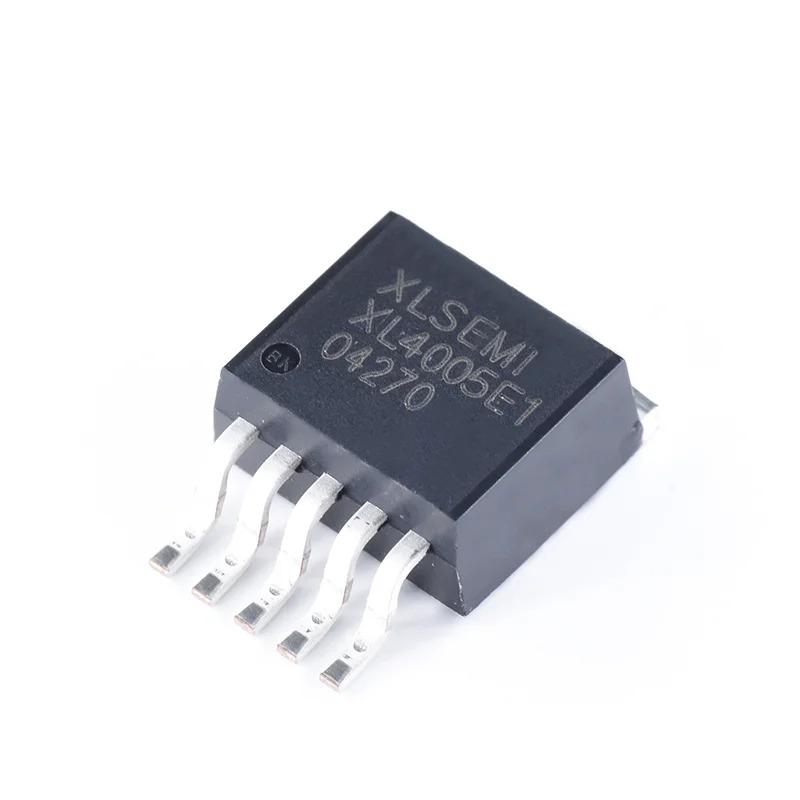

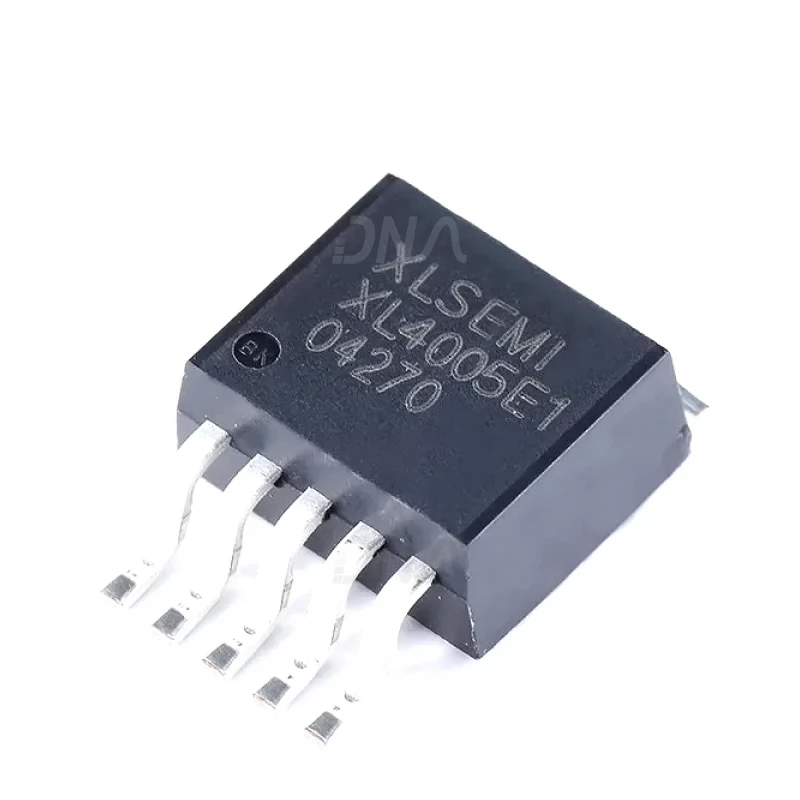

XL4005E1 5A 300KHz 32 V Buck DC to DC Converter


Write a review | 0 reviews

  • Stock: 50

    Availability: InStock priceValidUntil: 2026-03-14

  • Brand: XL Semi
  • SKU: 3886 | DAB713

Availability: InStock priceValidUntil: 2026-03-14

  • Rs. 68.44 (inc GST)
    Rs.58.00 + GST

    Qty :

GST Invoice: Available for all purchases — eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need more quantity or not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

XL4005E1 5 Ampere 300KHz 32 Volt Buck DC to DC Converter IC

XL4005 5A 300KHz 32V Buck DC to DC Converter in TO263-5L

The XL4005E1 is a 300KHz fixed frequency PWM buck (step-down) DC/DC converter, capable of driving a 5 Ampere load with high efficiency, low ripple and excellent line and load regulation. Requiring a minimum number of external components, the regulator is simple to use and include internal frequency compensation and a fixed-frequency oscillator.  The PWM control circuit in XL4005 IC is able to adjust the duty ratio linearly from 0 to 100%. An enable function, an over current protection function is built inside. When short protection function happens, the operation frequency will be reduced from 300KHz to 60KHz. An internal compensation block is built in XL4005 DC to DC Converter IC to minimize external component count.

DNA solutions, Nashik has various types of DC to DC Converter IC. Check out our complete collection of  Voltage Regulator and DC to DC Converter IC's.

If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features of XL4005E1 DC to DC Converter IC

  •  Wide 5V to 32V Input Voltage Range
  •  Output Adjustable from 0.8V to 30V
  •  Fixed 300KHz Switching Frequency
  •  5A Constant Output Current Capability
  •  Internal Optimize Power MOSFET
  •  Excellent line and load regulation
  •  TTL shutdown capability
  •  EN pin with hysteresis function
  •  Built in thermal shutdown function
  •  Built in current limit function
  •  Built in output short protection function
  •  Available in TO-263 package
  •  Maximum Duty Cycle 100%
  •  Minimum Drop Out 0.6V
  •  High efficiency

    Applications of XL4005E1 DC to DC Converter IC

    • LCD Monitor and LCD TV
    • Digital Photo Frame
    • Set-up Box
    • ADSL Modem
    • Telecom / Networking Equipment


    Package Includes

    1 x XL4005E1 Buck DC to DC Converter IC

    Extra Information
    Country of Origin China
    Imported By ElectroSource Private Limited
