YDLIDAR G2 Lidar- 360 Degree Laser Range Scanner (12m)

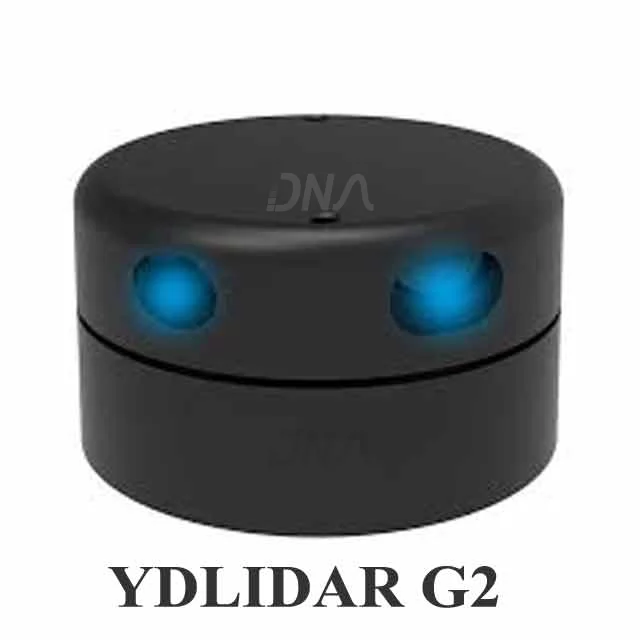

YDLIDAR G2 Lidar 360 Degree Laser Range Scanner with range of 12 meter

The YDLIDAR G2 Lidar is a 360-degree two-dimensional distance measurement product developed by the YDLIDAR team. Distance measurement is based on the triangulation method and the device is equipped with relevant optics, electricity, and an algorithm designed to realize high-frequency and high-precision measurements. The YDLIDAR G2 Lidar is a 360-degree two-dimensional distance measurement product developed by the YDLIDAR team. Distance measurement is based on the triangulation method and the device is equipped with relevant optics, electricity, and an algorithm designed to realize high-frequency and high-precision measurements. Additionally, YDLIDAR is continuously obtaining the angle information through the 360 degree rotation of the motor to achieve precise distance to every object in the surroundings.

DNA solutions, Nashik has various types of Modules. Check out our complete collection of Module's.

If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features YDLIDAR G2 LIDAR Sensor

  • Excellent small form-factor device
  • 360 degree omnidirectional scanning
  • Industrial grade brushless motor drive, stable performance
  • Small distance error; stable distance measurement and high accuracy
  • Strong resistance to ambient light interference
  • Laser power meets Class I laser safety standards

Specifications YDLIDAR G2 LIDAR Sensor

  • Scan range: 0.1 – 12 m
  • Scan rate: 5 – 12 Hz, user-configurable
  • Angular resolution (typical): ~0.5 degrees, user-configurable
  • Angular range: 360 degrees
  • Range accuracy: < 1% of distance
  • High-speed ranging
  • Ranging frequency: 5000 Hz
  • Interfaces: UART/Serial port interface, mini-USB

Datasheet Link

YDLIDAR G2 Datasheet

Package Includes

1 x YDLIDAR G2 Lidar 360 Degree Laser Range Scanner (12m)
