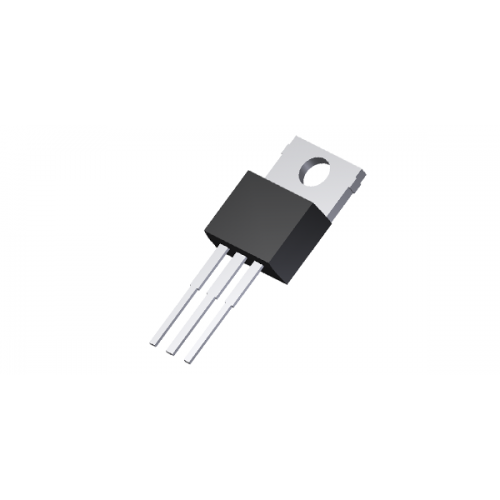

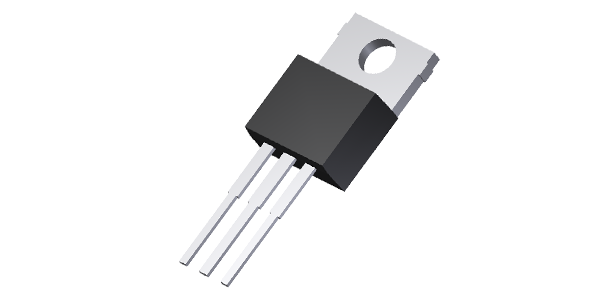

LM1117 3.3V TO-220 Linear Voltage Regulator DIP IC

LM1117 3.3V TO-220 Linear Voltage Regulator DIP IC

The LM1117 3.3V TO-220 Linear Voltage Regulator DIP IC is a low dropout voltage regulator capable of providing a fixed 3.3V output voltage with up to 800mA output current. This regulator is widely used in various electronics projects to provide a stable 3.3V power supply for microcontrollers, sensors, and other low-voltage devices. With a dropout voltage as low as 1.1V at full load, it ensures reliable operation even with relatively low input voltages. The TO-220 package offers easy mounting and effective heat dissipation, making it suitable for both prototyping and final production designs.

DNA solutions, Nashik has various types of Regulator IC's. Check out our complete collection of Regulator IC's.

Features of LM1117 3.3V TO-220 Linear Voltage Regulator DIP IC

• Fixed 3.3V output voltage

• Output current up to 800mA

• Low dropout voltage

• Internal current and thermal limiting protection

• TO-220 package for easy mounting and heat dissipation

• High accuracy output voltage regulation

Specifications of LM1117 3.3V TO-220 Linear Voltage Regulator DIP IC

• Output voltage: 3.3V

• Output current: Up to 800mA

• Dropout voltage: 1.1V at 800mA

• Operating temperature range: 0°C to +125°C

• Package: TO-220

• Built-in thermal and current limit protections

Applications of LM1117 3.3V TO-220 Linear Voltage Regulator DIP IC

• Power supply for microcontrollers and digital circuits

• Regulated 3.3V supply for sensors and modules

• Embedded systems and DIY electronics

• Communication equipment

• General-purpose voltage regulation applications

Package Includes

      1 x LM1117 3.3V TO-220 Linear Voltage Regulator DIP IC
