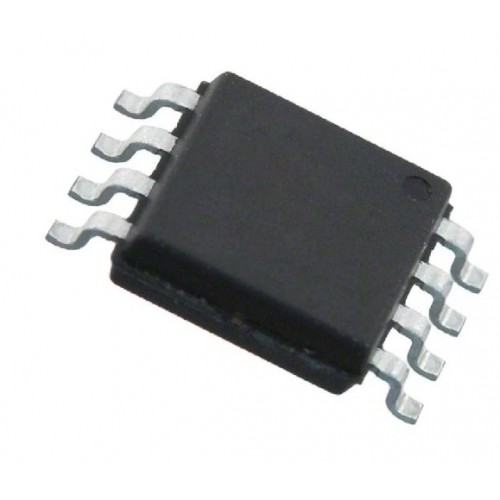

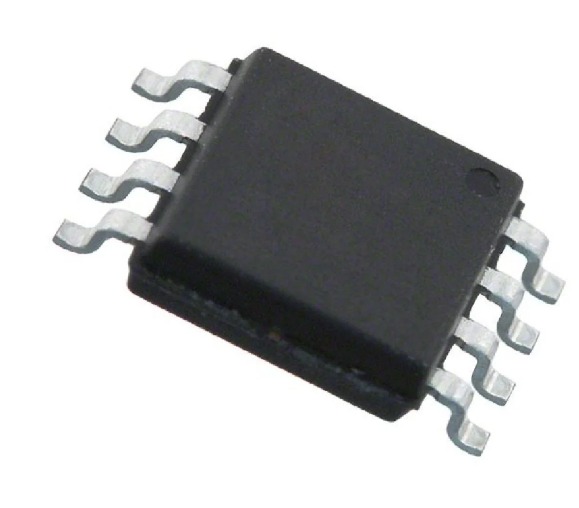

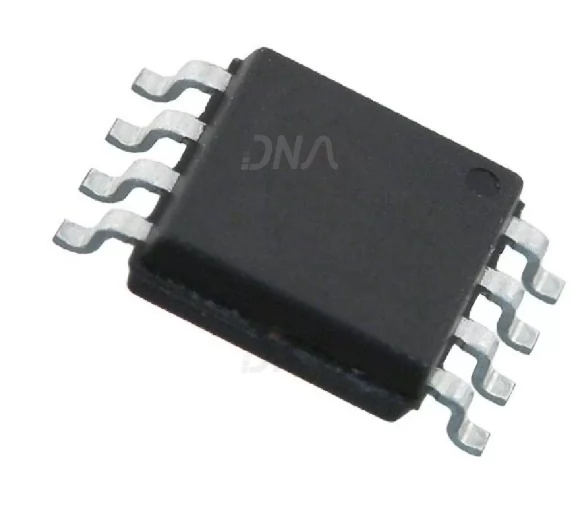

TM1814 LED DRIVER SMD IC ( Make:- Titan Micro )

TM1814 LED DRIVER SMD IC ( Make:- Titan Micro )

The TM1814 is a four-channel LED constant current adjustable driver IC developed by Titan Micro Electronics. It is designed to control RGBW (Red, Green, Blue, White) LEDs, providing precise color mixing and brightness control for various lighting applications.

DNA solutions, Nashik has various types of Driver IC's. Check out our complete collection of Driver IC's.

• Four Independent Channels: Controls four separate LED channels (OUTW, OUTR, OUTG, OUTB) for RGBW configurations

• Adjustable Constant Current: Each channel's current is adjustable in 64 levels, ranging from 6.5mA to 38mA, allowing for fine-tuned brightness control

• Single-Wire Communication: Utilizes a single-line data input (DIN) for communication, simplifying circuit design

• Internal Control Synchronization: Supports internal control synchronization, enabling multiple ICs to operate in unison without external synchronization signals

• Automatic Signal Shaping: Incorporates automatic signal reshaping to prevent distortion and ensure reliable data transmission across cascaded devices

Specifications of TM1814 LED DRIVER SMD IC ( Make:- Titan Micro )

• Data Transmission Rate: 800 KHz (1.25μs per bit)

• PWM Control: 8-bit (256 levels) PWM for each channel, providing smooth dimming and color transitions

• Package: SOP8 (Small Outline Package with 8 pins)

• Operating Temperature Range: -40°C to +85°C

Applications of TM1814 LED DRIVER SMD IC ( Make:- Titan Micro )

• LED Display Systems

• Decorative Lighting

• Automotive Lighting

• Consumer Electronics

Package Includes

      1 x TM1814 LED DRIVER SMD IC ( Make:- Titan Micro )
