125 KHz RFID Reader

  • Stock: Out Of Stock
  • SKU: 2050 | DAB811
  • Rs. 442.50 (inc GST)
    Rs.375.00 + GST

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location.

125 KHz RFID Reader

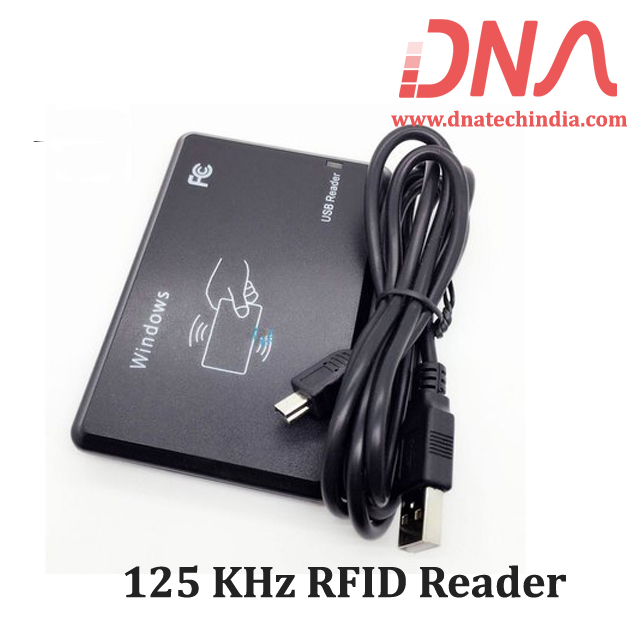

JT308 125 Khz HID USB Proximity RFID Reader

JT308 is a compact simple and fast 125Khz RFID Reader with a USB interface. It reads the ID number from the EM 4100 card or a compatible card. After detecting the card, the card number is sent directly via the USB interface, just like the entry number from the USB keyboard.

JT308 RFID Reader is a standard HID devices, means you don't need to install any driver, the code can be read into any input editor. For example : Notepad, WORD and other text editing software.

If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Key Features of JT308 125KHz USB RFID Reader

  • USB interface, no driver required.
  • Reads the EM card inside the ID number and send it to the computer via the USB interface.
  • The output format can be selected by management cards.
  • Support for EM4100 cards

Specification if 125KHz Desktop RFID Card Reader

  • Power input : USB (from a PC)
  • Interface : USB, 106bit / s, no additional driver required.
  • Reading distances up to 8 cm
  • Frequency : 125 KHz
  • Temperature : -30 degrees Celsius to +60 degrees Celsius
  • Humidity : 5% -95% Relative humidity No condensation Noise
  • Visual signaling : LED output and buzzer
  • Output card format : 8H10D
  • USB cable length : approx. 120 cm / 47in
  • Element size : 95 * 61 * 10 mm / 3.74 * 2.4 * 0.4 inches (L * W * H)
  • Weight : 33 grams

How to Use

  • Connect the card reader to the computer USB port with the given usb cable.
  • The reader will 'Beep' sound and flash about that power successfully, and then half a second after the 'Beep' sound and flash about that device self-test successfully, without Install any drivers, windows will automatically recognize it.
  • Open EXCEL, MS word or Notepad,the card number would be input by self

Material Provided

  • 1 X JT308 RFID Card Reader
  • 1 X USB Cable

Please Note RFID tags are not provided with this reader you will have to buy them separately from here

Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
