1N4148 Diode SMD IC

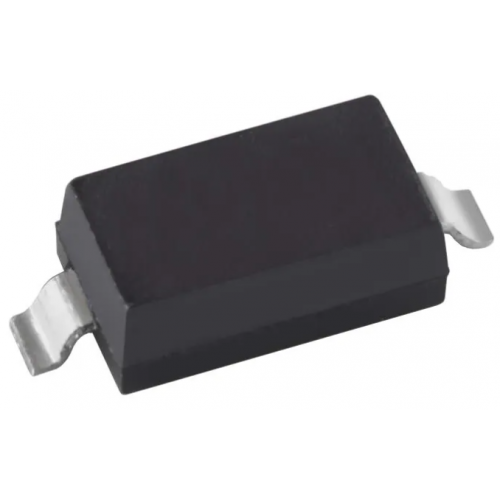

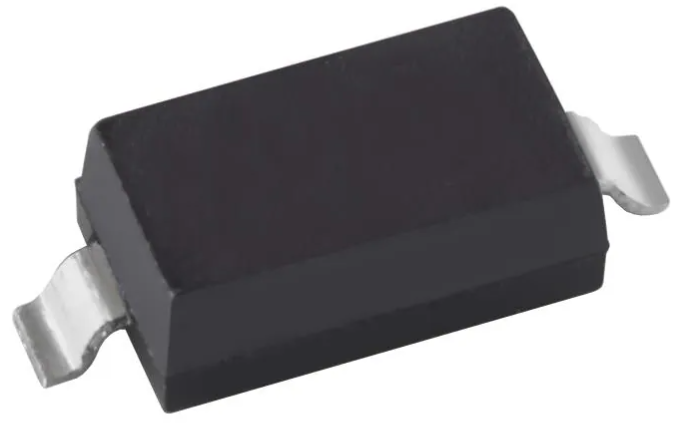

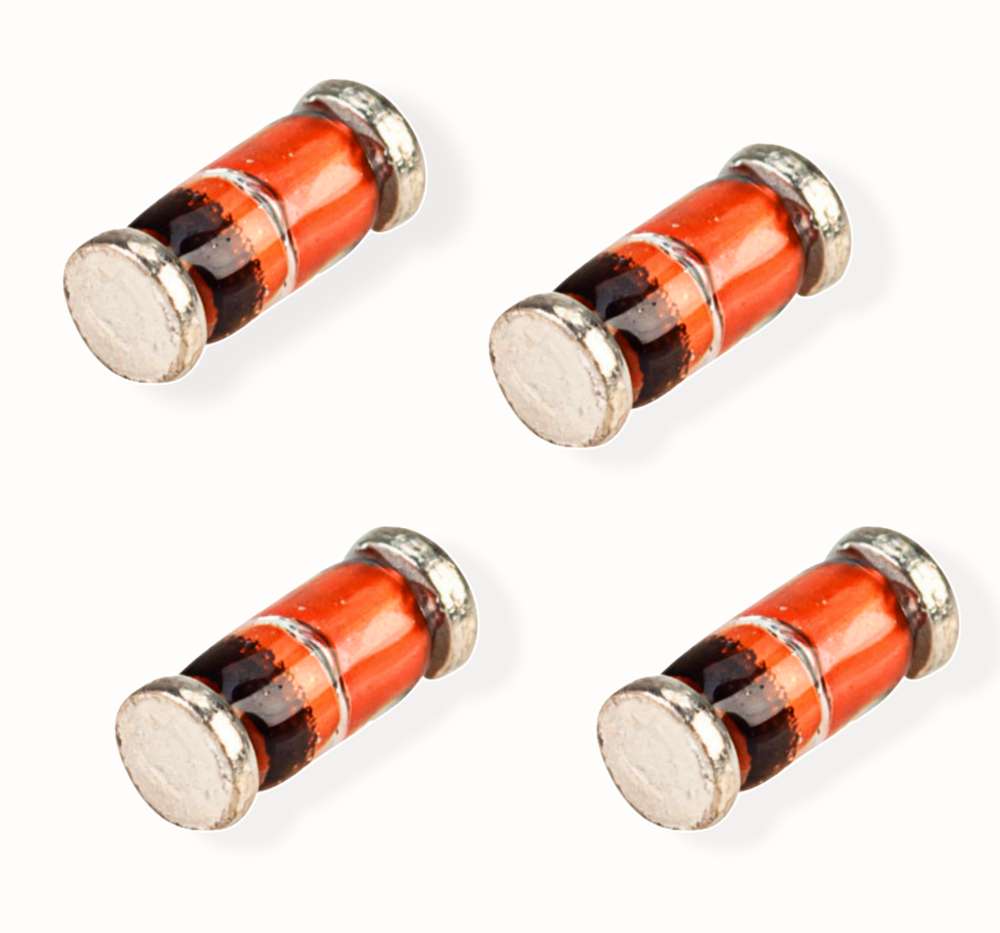

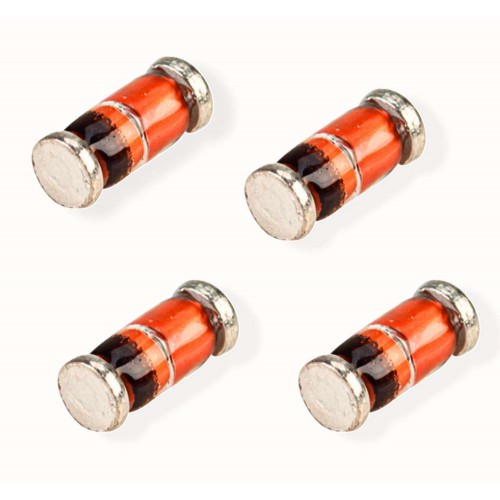

1N4148 Diode SMD High-Speed Switching Diode

1N4148 Diode SMD IC for high-speed switching with low forward voltage drop and compact SMD package.

The 1N4148 Diode SMD High-Speed Switching Diode is designed for efficient signal processing and general-purpose switching applications. This diode features a fast recovery time and a low forward voltage drop, making it suitable for high-speed switching tasks and circuit protection. Its compact SMD package allows for easy integration into densely populated PCBs, ensuring reliability and performance in various applications.

Ideal for logic circuits, 1N4148 Diode SMD High-Speed Switching Diode excels in signal clamping and waveform shaping. With a reverse voltage rating of 100V and a forward current capability of 300mA, it delivers high efficiency with low leakage current. This diode is a preferred choice for engineers seeking dependable solutions for their electronic designs.

Applications for the 1N4148 Diode SMD High-Speed Switching Diode include high-speed switching circuits, signal processing, and general-purpose rectification. Its robust design ensures stability and reliability, making it a valuable component in modern electronic devices.

Explore a wide range of quality Diodes & Transistors at DNA. We offer the 1N4148 Diode SMD from a trusted manufacturer in the Diodes & Transistors category. Check other Diodes & Transistors that we have in stock.

If you are searching for specific electronic components, reach out to us. We can help you find parts like Microcontrollers, Sensors, and more. We also offer import services for items that are not readily available. Contact Us.

Features of 1N4148 Diode SMD High-Speed Switching Diode

• Fast switching speed
• Low forward voltage drop
• High reliability and stability
• Compact SMD package for space-saving designs
• Low leakage current

Specification of 1N4148 Diode SMD High-Speed Switching Diode

• Reverse voltage (VR): 100V
• Forward current (IF): 300mA
• Peak forward surge current: 1A
• Forward voltage drop (VF): 1V
• Recovery time: 4ns

Applications of 1N4148 Diode SMD High-Speed Switching Diode

• High-speed switching circuits
• Signal processing
• Clamping
• Waveform shaping circuits
• General-purpose rectification

Package Includes

• 1 X 1N4148 Diode SMD High-Speed Switching Diode
