Product Images are shown for illustrative purposes only and may differ from actual product.

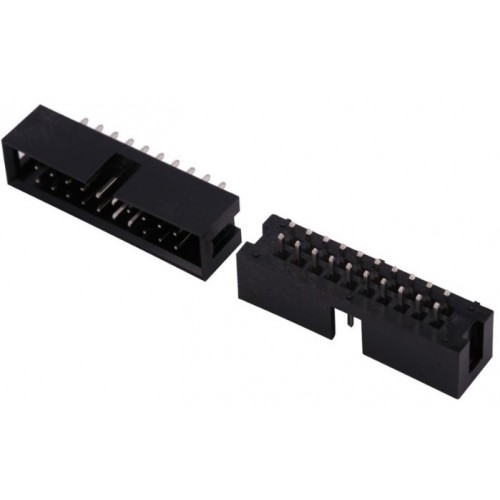

20 Pin Box Male Connector Straight Type

Write a review | 0 reviews

Stock: Out Of Stock
Availability: NotInStock priceValidUntil: 2026-09-30
Brand: Generic
SKU: 9322 | DAG722

Rs. 14.75 (inc GST)
Rs.12.50 + GST

Qty :
Qty Qty

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

Description

20 Pin Box Male Connector Straight Type

20 Pin Box Male Connector for PCB mounting with 2.54 mm pitch and robust thermoplastic housing.

The 20 Pin Box Male Connector Straight Type is ideal for secure data, signal, and power connections. Featuring a dual-row design with 20 pins and a standard 2.54 mm pitch, this connector ensures reliable performance in embedded and industrial applications. Its shrouded design allows for easy mating with female IDC connectors, providing a robust connection that is essential for internal device wiring and telecommunications gear.

Made with a durable thermoplastic housing, the 20 Pin Box Male Connector Straight Type offers mechanical strength and is RoHS compliant. It is suitable for through-hole mounting on PCBs, making it versatile for various projects. Whether you are programming, debugging, or connecting cables to boards, this connector meets your needs efficiently.

Choose the 20 Pin Box Male Connector Straight Type for dependable connections in your electronic setups. Explore its applications in networking gear and internal wiring to enhance your projects. This connector stands out for its quality and reliability.

Explore a wide range of quality connectors at DNA. The Nashik brand offers reliable solutions in the Connectors and Cables category. Check other "Connectors and Cables" that we have in stock.

If you are looking for specific electronic components, reach out to us. We can assist in sourcing parts like Inductors, Transistors, Capacitors, and more. We support retail and bulk orders. Contact Us.

Features of 20 Pin Box Male Connector Straight Type

20-pin dual-row male connector
Straight through-hole mounting
Standard 2.54 mm pin pitch
Boxed/shrouded design for keyed mating
Robust thermoplastic housing
RoHS compliant

Specification of 20 Pin Box Male Connector Straight Type

Connector Type: Male Box Header
Number of Pins: 20
Contact Pitch: 2.54 mm
Mounting Type: Through-hole
Orientation: Straight
Voltage Rating: Up to 250V AC/DC
Color: Black
Contact Plating: Nickel

Applications of 20 Pin Box Male Connector Straight Type

Internal device wiring
Networking and telecommunications gear
Programming/debug ports
Cable-to-board interconnects

Package Includes

1 X 20 Pin Box Male Connector Straight Type

Extra Information
Country of Origin	China
Imported By	ElectroSource Private Limited
