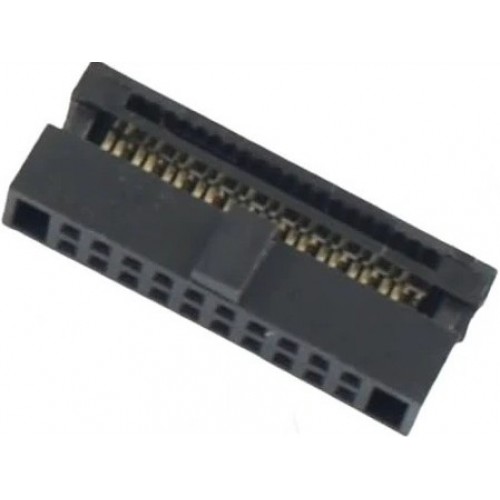

20 PIN FRC FEMALE CONNECTOR

20 PIN FRC FEMALE CONNECTOR

The 20-Pin Flat Ribbon Cable (FRC) Female Connector is a type of electrical connector designed for flat ribbon cables. It is commonly used in data and signal transmission applications, providing a reliable and organized connection between circuit boards, microcontrollers, and other electronic components. The connector features a latch or IDC (Insulation Displacement Contact) mechanism for secure attachment to ribbon cables without requiring soldering.

DNA solutions, Nashik has various types of Connector's. Check out our complete collection of Connector's.

• 20-pin configuration for multi-channel data transmission

• IDC (Insulation Displacement Contact) technology for easy cable termination

• Polarized design to prevent incorrect connections

• Secure locking mechanism ensures firm connection

• Compact and lightweight for space-constrained applications

• Compatible with standard 1.27mm pitch ribbon cables

Specifications of 20 PIN FRC FEMALE CONNECTOR

• Number of Pins: 20

• Pitch: 1.27mm (Standard for FRC connectors)

• Connector Type: Female

• Mounting Type: Through-hole or panel mount (varies by model)

• Termination Method: IDC (Insulation Displacement Contact)

• Current Rating: Typically 1A per pin

• Voltage Rating: 250V

Applications of 20 PIN FRC FEMALE CONNECTOR

• Used in microcontroller and microprocessor-based circuits

• Industrial automation and control systems

• Computer and peripheral connections

• Embedded systems for interfacing with multiple devices

• Signal and data transmission in consumer electronics

Package Includes

      1 x 20 PIN FRC FEMALE CONNECTOR
