• 3570-1419-051 RELAY REED SIP SPST 1A 5V

Product Images are shown for illustrative purposes only and may differ from actual product.

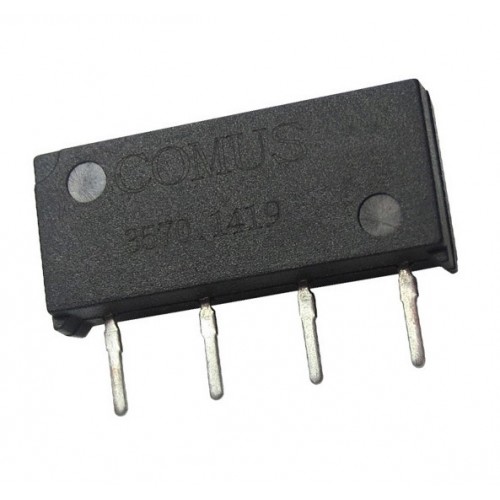

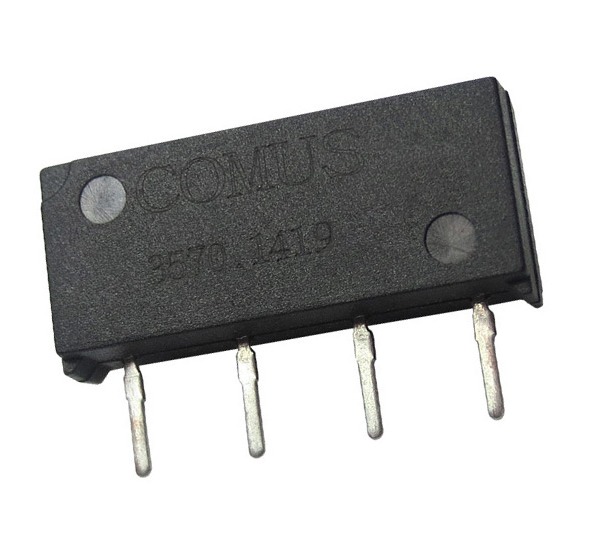

3570-1419-051 RELAY REED SIP SPST 1A 5V

  • Stock: Out Of Stock
  • SKU: 8231 | DAH859

Availability: NotInStock priceValidUntil: 2025-09-26

  • Rs. 455.95 (inc GST)
    Rs.386.40 + GST

    Qty :

GST Invoice: Available for all purchases — eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need more quantity or not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

3570-1419-051 RELAY REED SIP SPST 1A 5V

3570-1419-051 RELAY REED SIP SPST 1A 5V

The part number "3570-1419-051" refers to a reed relay manufactured by Comus International. Reed relays are electromechanical switches that use a magnetic field to control the opening and closing of their reed contacts. They are known for their fast switching speeds, low power consumption, and long operational life.

DNA solutions, Nashik has various types of Relay's. Check out our complete collection of Relay's.

If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features of 3570-1419-051 RELAY REED SIP SPST 1A 5V

  • Single In-Line Package (SIP): The relay is housed in a SIP configuration, which is space-efficient and suitable for high-density circuit board designs
  • Single Pole Single Throw (SPST) Configuration: This denotes a simple on/off switch mechanism, making it ideal for straightforward switching applications
  • Coil Voltage: Designed to operate with a 5V DC coil voltage, ensuring compatibility with standard 5V systems
  • Current Rating: Capable of handling up to 1A of current, suitable for low to moderate power applications

Specifications of 3570-1419-051 RELAY REED SIP SPST 1A 5V

  • Contact Form: 1 Form A (SPST-NO) – Single Pole Single Throw Normally Open
  • Coil Resistance: Typically around 500 ohms, which determines the current draw of the coil
  • Switching Voltage: Maximum of 150V DC, allowing it to handle a variety of signal and power switching tasks
  • Switching Current: Maximum of 1A, suitable for various low-power applications
  • Operate Time: Approximately 0.5 milliseconds, ensuring rapid response in switching operations
  • Release Time: Approximately 0.1 milliseconds, allowing for quick disengagement

Applications of 3570-1419-051 RELAY REED SIP SPST 1A 5V

  • Telecommunications
  • Signal Switching
  • Medical Equipment
  • Security Systems
  • Automotive Electronics

    Package Includes

          1 x 3570-1419-051 RELAY REED SIP SPST 1A 5V

    Extra Information
    Country of Origin China
    Imported By ElectroSource Private Limited
