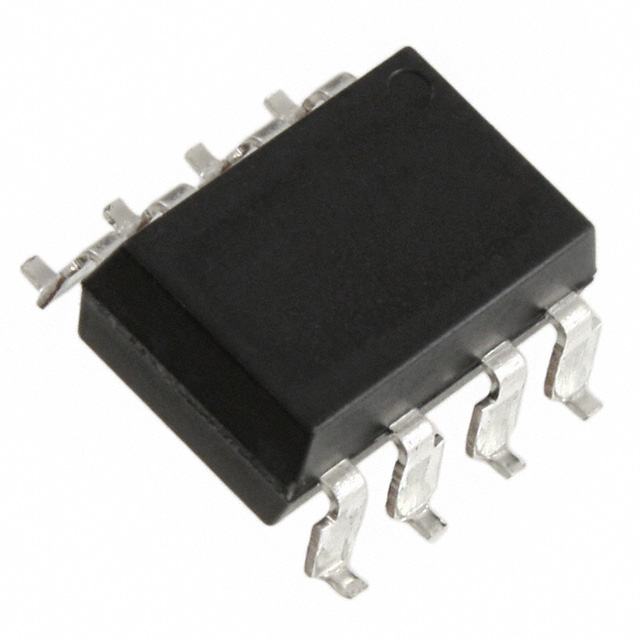

• 6N137 SMD High Speed Opto-coupler

Product Images are shown for illustrative purposes only and may differ from actual product.

6N137 SMD High Speed Opto-coupler

  • Stock: 65
  • SKU: 0988 | DAB643
  • Rs. 37.76 (inc GST)
    Rs.32.00 + GST

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location.

6N137 SMD High Speed Opto-coupler

The 6N137-SMD is single channel 10 MBd opto-coupler utilizing a high efficient input LED coupled with an integrated optical photodiode IC detector.

The detector has an open drain NMOS-transistor output, providing less leakage compared to an open collector Schottky clamped transistor output. For the single channel type, an enable function on pin 7 allows the detector to be strobed. The use of a 0.1 μF bypass capacitor connected between pin 5 and 8 is recommended.

Features of 6N137 High Speed Opto-coupler

  • Choice of CMR performance of 15 kV/μs, 5 kV/μs, and 1000 V/μs

  • High speed : 10 MBd typical

  • +5 V CMOS compatibility

  • Pure tin leads

  • Guaranteed AC and DC performance over temperature : -40 °C to +100 °C temperature range

  • Meets IEC 60068-2-42 (SO2) and IEC 60068-2-43 (H2S) requirements

  • Low input current capability of 5 mA

Applications of 6N137 High Speed Optocoupler

  •  Microprocessor system interface

  •  PLC, ATE input/output isolation

  •  Computer peripheral interface

  •  Digital fieldbus isolation: CC-link, DeviceNet, profibus, SDS

  •  High speed A/D and D/A conversion

  •  AC plasma display panel level shifting

  •  Multiplexed data transmission

  •  Digital control power supply

  •  Ground loop elimination, noise isolation

Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
