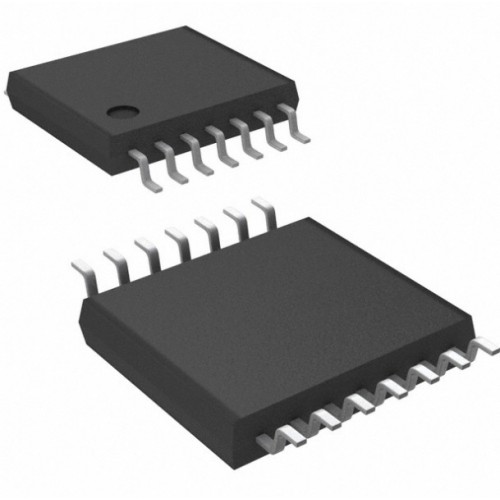

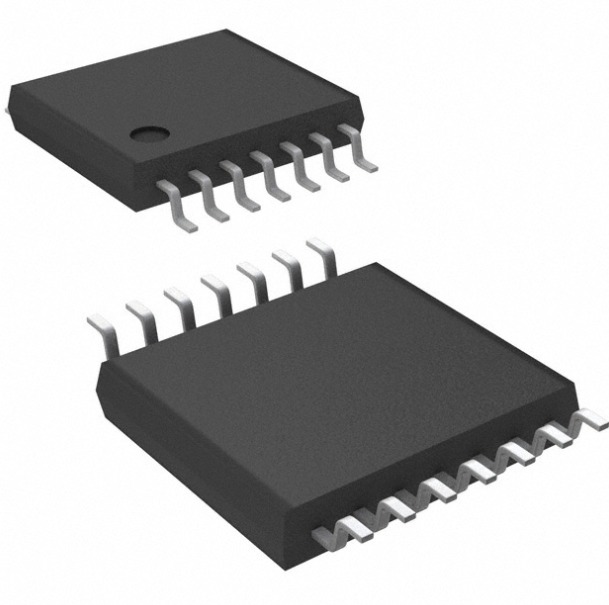

74AHC14PW-Q100; 74AHCT14PW-Q100 Hex Inverting Schmitt Trigger SMD IC

74AHC14PW-Q100; 74AHCT14PW-Q100 Hex Inverting Schmitt Trigger SMD IC

74AHC14PW-Q100,118 is a hex inverter with Schmitt-trigger inputs. This device inputs are overvoltage tolerant. This feature allows the use of this device as translator in mixed voltage environments. This product has been qualified to the automotive electronics council (AEC) standard Q100 (Grade 1) and is suitable for use in automotive applications. It features ESD protection (HBM: ANSI/ESDA/JEDEC JS-001 class 2 exceeds 2000V, CDM: ANSI/ESDA/JEDEC JS-002 class C3 exceeds 1000V).

DNA solutions, Nashik has various types of Trigger IC's. Check out our complete collection of Trigger IC's.

• Wide supply voltage range from 2V to 5.5V

• Overvoltage tolerant inputs to 5.5V, high noise immunity

• CMOS low power dissipation, balanced propagation delays

• CMOS input level, latch-up performance exceeds 100mA per JESD 78 Class II Level A

• Input leakage current is 0.1μA maximum at (VI=5.5V or GND;VCC = 0V to 5.5V, 25°C)

• Supply current is 2μA maximum at (VI=VCC or GND;IO = 0A;VCC = 5.5V, 25°C)

• Input capacitance is 3pF typical at (25°C)

• Propagation delay is 4.3ns typical at (CL = 15pF, 25°C)

• Operating temperature range from -40°C to +125°C

Specifications of 74AHC14PW-Q100; 74AHCT14PW-Q100 Hex Inverting Schmitt Trigger SMD IC

• Logic Function: Inverter

• No. of Inputs: 1Inputs

• Logic Case Style

• Product Range: 74AHC14

• Supply Voltage Min: 2V

• Schmitt Trigger: Input

• With Schmitt Trigger - Input

• Automotive Qualification:  Standard

Package Includes

      1 x 74AHC14PW-Q100; 74AHCT14PW-Q100 Hex Inverting Schmitt Trigger SMD IC
